AD9861BCPZ-50 - Analog Devices

Description: Baseband Transceiver

Download AD9861BCPZ-50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

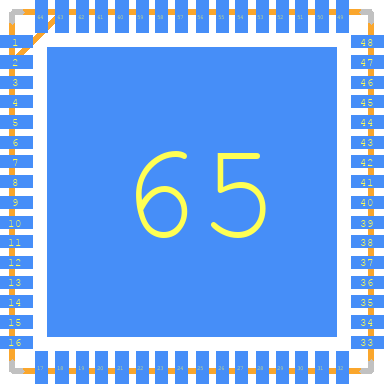

AD9861BCPZ-50 - Analog Devices PCB footprint - Other - Other - QFN50P900X900X100-65N
click to zoom
3D Models
AD9861BCPZ-50 - Analog Devices  - 3D model - Other - QFN50P900X900X100-65N
click to zoom

AD9861BCPZ-50 Details

  • Manufacturer Part Number:

    AD9861BCPZ-50

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    9 mm

AD9861BCPZ-50 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize the ADC performance, ensure that the analog input signal is properly filtered and buffered, and that the ADC clock frequency is set to the recommended value. Additionally, ensure that the ADC's internal reference voltage is stable and accurate.
  • The maximum data transfer rate of the AD9861's SPI interface is 20 MHz. However, the actual data transfer rate may be limited by the specific application and system design.
  • To configure the DAC for optimal performance, ensure that the DAC clock frequency is set to the recommended value, and that the DAC output is properly filtered and buffered. Additionally, ensure that the DAC's internal reference voltage is stable and accurate.
  • The recommended layout and routing for the AD9861's PCB design involves keeping the analog and digital signal paths separate, using a solid ground plane, and minimizing noise and interference. Additionally, ensure that the PCB layout is symmetrical and balanced to minimize thermal gradients.
