AD9864BCPZRL - Analog Devices

Description: RF Receiver IF Digitizing Subsystem

Download AD9864BCPZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

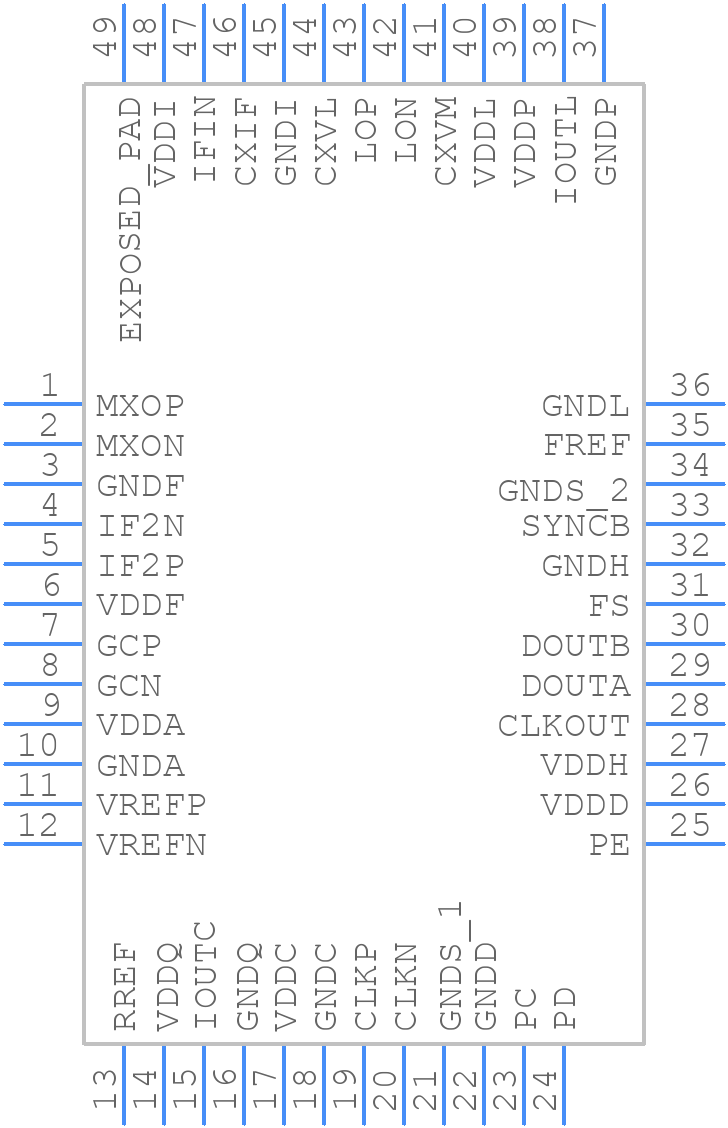

AD9864BCPZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9864BCPZRL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-1 (LFCSP)
click to zoom
3D Models
AD9864BCPZRL - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-1 (LFCSP)
click to zoom

AD9864BCPZRL Details

  • Manufacturer Part Number:

    AD9864BCPZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30
