AD9887AKSZ-100 - Analog Devices

Description: Display Interface IC Require HDMI license see product comment

Download AD9887AKSZ-100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9887AKSZ-100 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

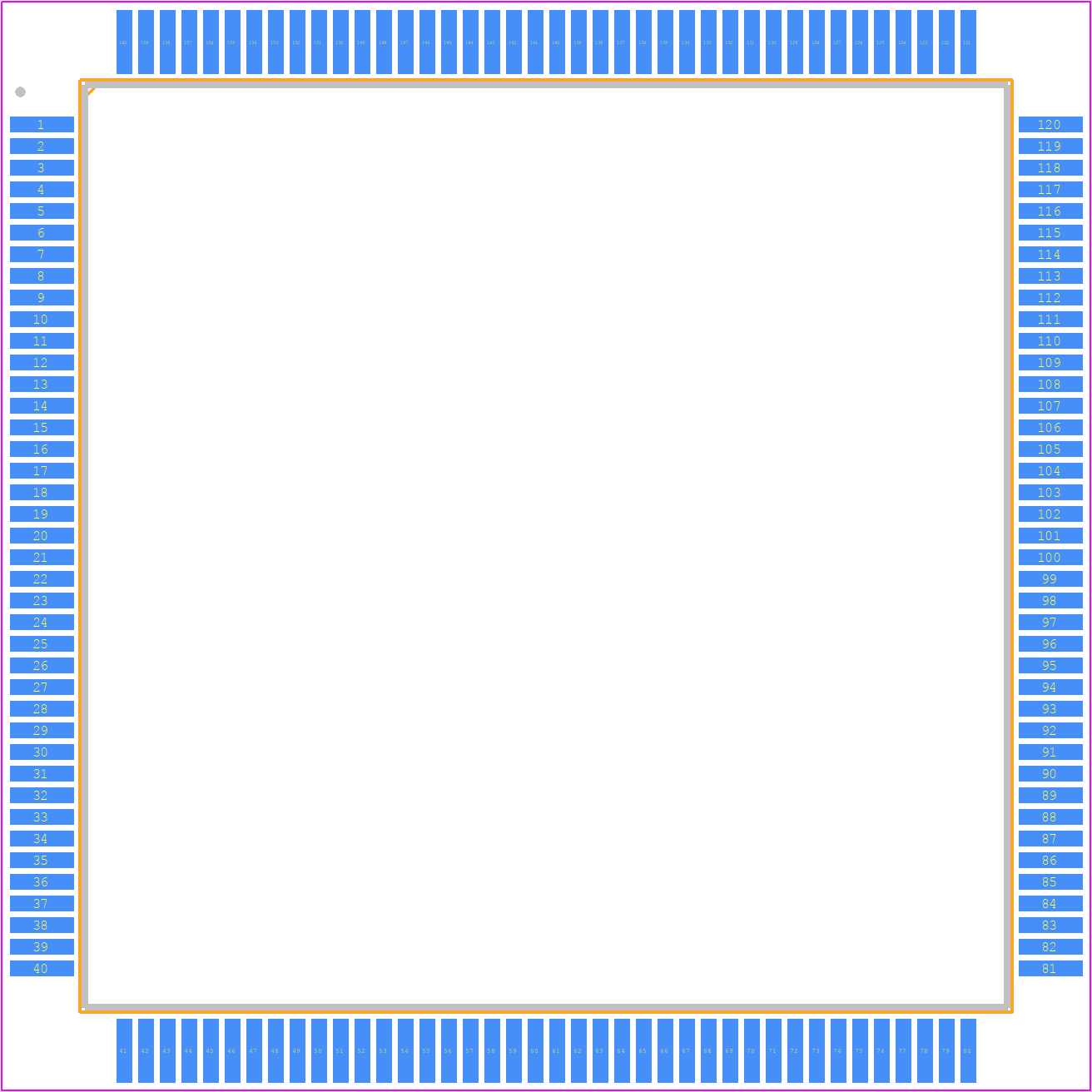

AD9887AKSZ-100 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 160-Lead Metric Quad Flat Package [MQFP] (S-160)
click to zoom
3D Models
AD9887AKSZ-100 - Analog Devices - 3D model - Quad Flat Packages - 160-Lead Metric Quad Flat Package [MQFP] (S-160)
click to zoom

AD9887AKSZ-100 Details

  • Manufacturer Part Number:

    AD9887AKSZ-100

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    QFP, QFP160,1.2SQ

  • Pin Count:

    160

  • Manufacturer Package Code:

    S-160

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G160

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    160

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP160,1.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    28 mm

AD9887AKSZ-100 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9887AKSZ-100 can be found in the AD9887 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference.
  • To optimize the performance of the AD9887AKSZ-100, it is recommended to follow the application notes and guidelines provided by Analog Devices, and to consult with their technical support team for specific guidance tailored to your application.
  • The maximum clock frequency that the AD9887AKSZ-100 can support is 100 MHz, as specified in the datasheet. However, it is recommended to consult with Analog Devices' technical support team to determine the optimal clock frequency for your specific application.
  • To troubleshoot issues with the AD9887AKSZ-100, it is recommended to consult the troubleshooting guide provided in the datasheet, and to contact Analog Devices' technical support team for further assistance.
  • The power consumption of the AD9887AKSZ-100 varies depending on the operating mode and frequency. The typical power consumption is around 350 mW, but it can be as low as 150 mW in low-power mode. Consult the datasheet for more detailed information.
