The recommended PCB layout for the AD9887AKSZ-140 can be found in the AD9887 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9887 datasheet, which highlights key considerations for signal integrity, power supply decoupling, and thermal management.
To optimize the AD9887AKSZ-140's performance, it's essential to understand the specific requirements of your application. Analog Devices provides an AD9887 Evaluation Board and software development kit (SDK) that allows you to evaluate and optimize the device's performance for your specific use case. Additionally, the AD9887 datasheet provides detailed information on the device's performance characteristics, which can be used to optimize system-level design parameters such as clock frequency, data rate, and signal amplitude.
The AD9887AKSZ-140 is a high-speed, high-power device that requires careful thermal management to ensure reliable operation. The device has a maximum junction temperature (TJ) of 125°C, and the datasheet provides guidelines for thermal design, including thermal resistance, power dissipation, and recommended heat sink designs. It's essential to follow these guidelines and consider factors such as airflow, heat sink design, and PCB thermal conductivity to ensure the device operates within its recommended temperature range.
Troubleshooting issues with the AD9887AKSZ-140 requires a systematic approach. Start by reviewing the datasheet and application notes to ensure that the device is properly configured and that all recommended design guidelines have been followed. Use tools such as oscilloscopes and logic analyzers to debug the device's digital and analog interfaces. Analog Devices also provides a range of support resources, including FAQs, knowledge base articles, and technical support forums, which can be used to troubleshoot common issues and get expert advice.
The AD9887AKSZ-140 is designed to meet the reliability and radiation tolerance requirements of aerospace and defense applications. The device is fabricated using a radiation-hardened process, and its reliability is characterized by a range of metrics, including mean time between failures (MTBF), failure in time (FIT), and latch-up immunity. The datasheet provides detailed information on the device's radiation tolerance and reliability characteristics, and Analog Devices also provides additional resources, such as radiation reports and reliability handbooks, to support the design of high-reliability systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD9887AKSZ-140 Overview

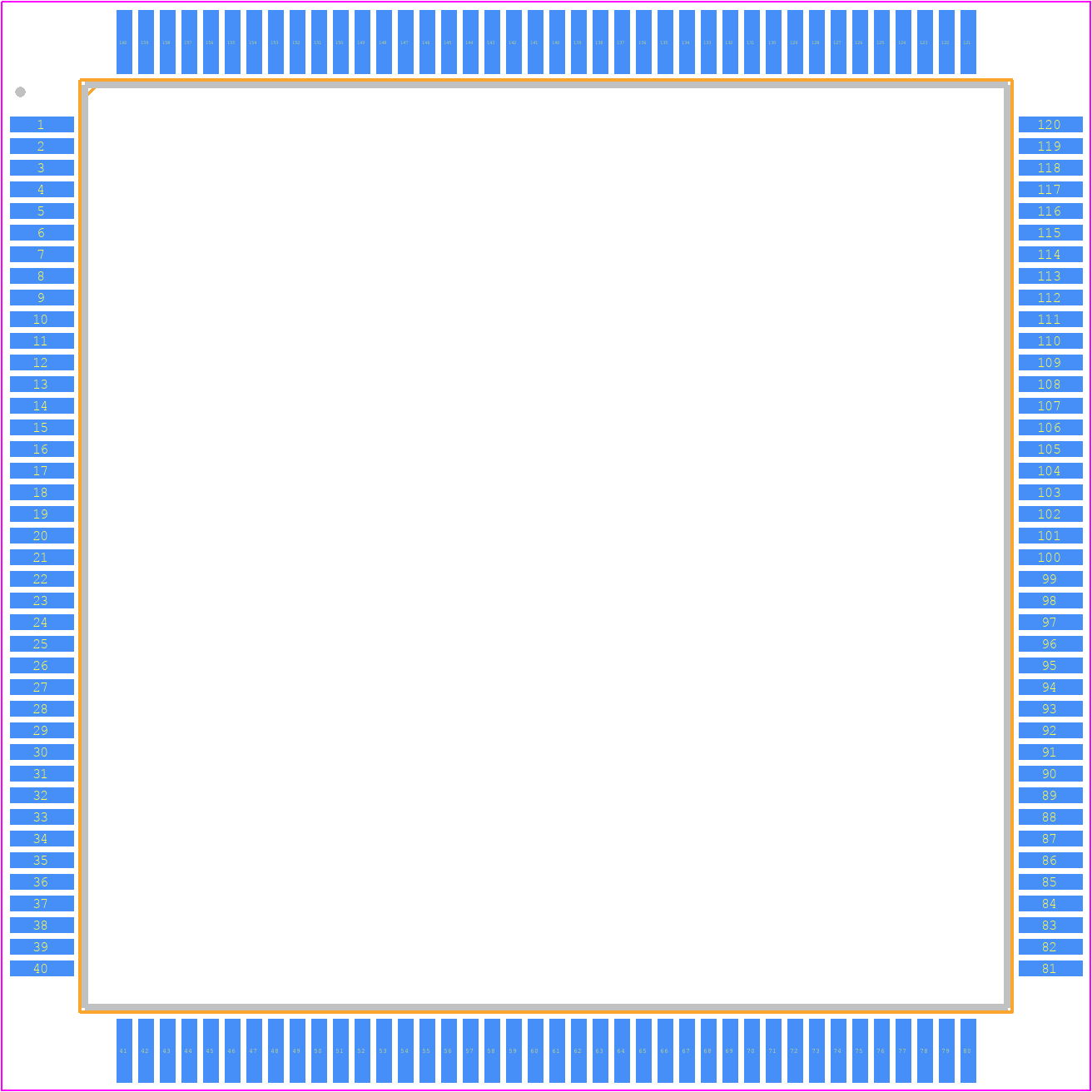

Use the download button to access the AD9887AKSZ-140 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD988,
or try a keyword search, such as Other Consumer ICs
