AD9888KSZ-100 - Analog Devices

Description: Triple Channel Triple ADC 100Msps 8-bit Parallel 128-Pin MQFP Tray

Download AD9888KSZ-100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9888KSZ-100 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

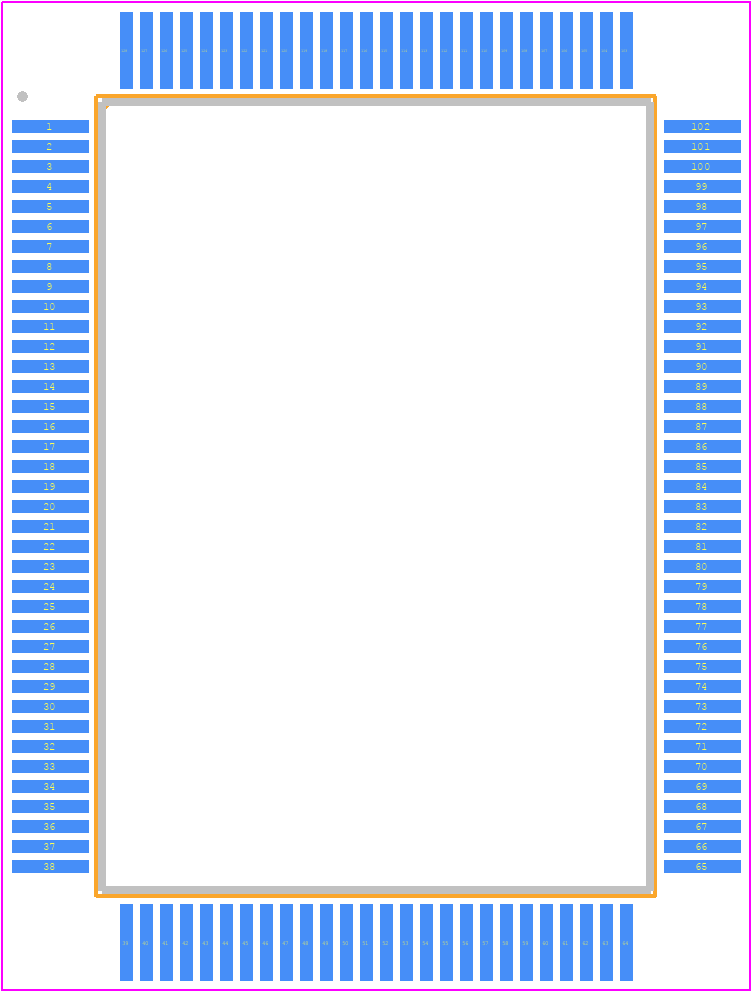

AD9888KSZ-100 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - S-128-1
click to zoom
3D Models
AD9888KSZ-100 - Analog Devices - 3D model - Quad Flat Packages - S-128-1
click to zoom

AD9888KSZ-100 Details

  • Manufacturer Part Number:

    AD9888KSZ-100

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, MQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    S-128-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.67X.93,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

AD9888KSZ-100 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9888KSZ-100 can be found in the AD9888 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9888 datasheet, which highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the AD9888KSZ-100's performance, it's essential to understand the specific requirements of your application. Analog Devices provides a range of application notes and design tools, such as the AD9888 Design and Development Tool, which can help you optimize the device's performance for your specific use case. Additionally, consulting with Analog Devices' technical support team or a qualified engineer with experience in high-speed analog-to-digital converters can provide valuable insights and guidance.
  • The AD9888KSZ-100 is a high-power device that requires careful thermal management to ensure reliable operation. The datasheet provides thermal resistance values and recommended thermal design guidelines, including the use of thermal vias, heat sinks, and thermal interface materials. It's essential to follow these guidelines and consider the thermal environment in which the device will operate to prevent overheating and ensure optimal performance.
  • Troubleshooting issues with the AD9888KSZ-100 requires a systematic approach. Start by reviewing the datasheet and application notes to ensure that the device is properly configured and that all recommended design guidelines have been followed. Use debugging tools, such as oscilloscopes and logic analyzers, to identify and isolate issues. Consult with Analog Devices' technical support team or a qualified engineer with experience in high-speed analog-to-digital converters for additional guidance and support.
  • The AD9888KSZ-100 is not a radiation-hardened device. However, Analog Devices offers a range of radiation-hardened analog-to-digital converters, such as the AD9226RH and AD9236RH, which are designed for use in harsh radiation environments. These devices are built using radiation-hardened processes and are tested to ensure compliance with radiation tolerance standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9888KSZ-100 Overview

Use the download button to access the AD9888KSZ-100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD988, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
