AD9901KPZ - Analog Devices

Description: ADG507AKPZ, Multiplexer Single 8:1, 12 V, 15 V, 28-Pin, PLCC, 1

Download AD9901KPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

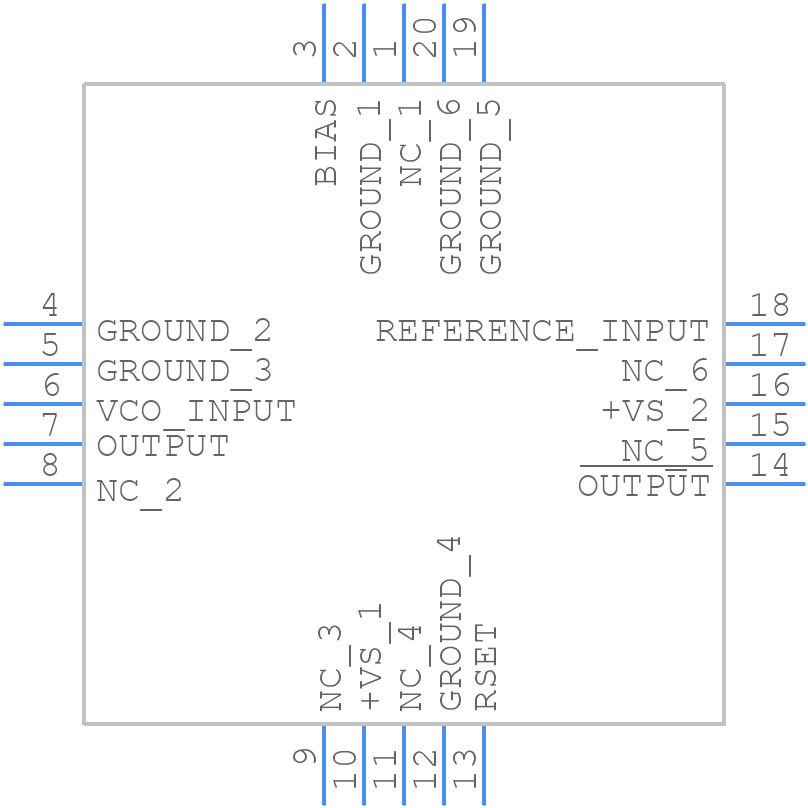

AD9901KPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9901KPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - AD9901KPZ
click to zoom

AD9901KPZ Details

  • Manufacturer Part Number:

    AD9901KPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO OPERATES AT -5.2 V SUPPLY

  • Analog IC - Other Type:

    PHASE DETECTOR

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.9662 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC20,.4SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    8.9662 mm

AD9901KPZ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD9901KPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the AD9901KPZ in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode choke to reduce electromagnetic interference (EMI). Additionally, ensure that the AD9901KPZ is placed away from noisy components and that the power supply is well-regulated.
  • The AD9901KPZ can handle clock frequencies up to 20 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the AD9901KPZ can be used with a 3.3V power supply. However, the device's performance may be affected, and the maximum clock frequency may be reduced. It's recommended to consult the datasheet and application notes for more information on using the AD9901KPZ with a 3.3V power supply.
  • To troubleshoot issues with the AD9901KPZ, start by checking the power supply voltage, clock frequency, and analog input signal. Use an oscilloscope to verify the clock signal and analog input signal. Check the datasheet and application notes for troubleshooting guides and FAQs. If the issue persists, contact Analog Devices Inc. support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9901KPZ Overview

Use the download button to access the AD9901KPZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD990, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
