AD9945KCPZ - Analog Devices

Description: AD9945KCPZ, Analogue Front End IC, 1-channel 12 bit-, 40000ksps Serial-3 Wire, 32-Pin LFCSP EP

Download AD9945KCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

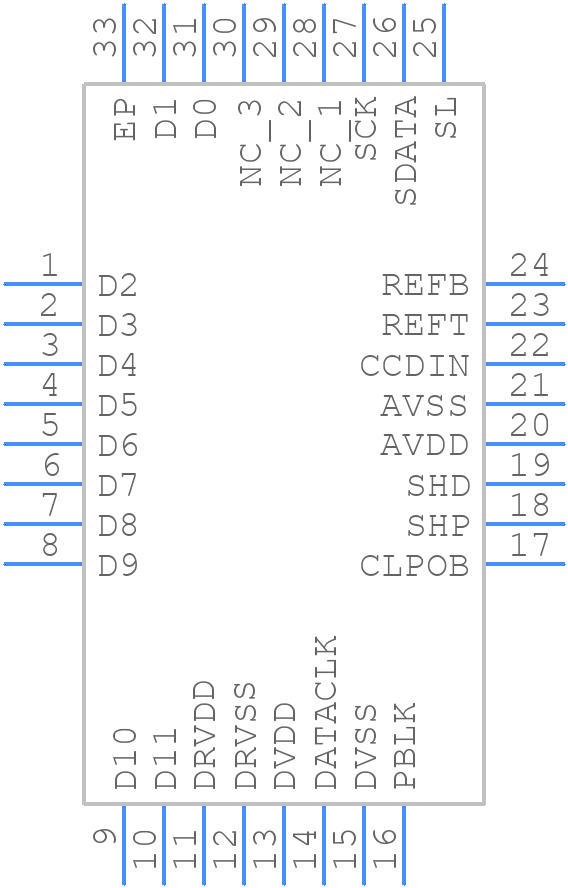

Symbol
AD9945KCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9945KCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-7)
click to zoom
3D Models
AD9945KCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-7)
click to zoom

AD9945KCPZ Details

  • Manufacturer Part Number:

    AD9945KCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD9945KCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize the performance of the AD9945KCPZ in terms of noise reduction, it is recommended to use a low-noise power supply, decouple the power supplies with capacitors, and use a ground plane to reduce electromagnetic interference (EMI). Additionally, using a shielded enclosure and keeping the analog and digital circuits separate can also help reduce noise.
  • The AD9945KCPZ can support clock frequencies up to 65 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The AD9945KCPZ can be configured for different video formats by programming the device's registers. The device supports various video formats, including NTSC, PAL, and SECAM. The specific configuration will depend on the video format and the application requirements.
  • The typical power consumption of the AD9945KCPZ is around 350 mW. However, the actual power consumption may vary depending on the specific application, clock frequency, and operating conditions.
