AD9949KCPZ - Analog Devices

Description: AD9949KCPZ, Analogue Front End IC, 1-channel 12 bit-, 36000ksps Serial-3 Wire, 40-Pin LFCSP EP

Download AD9949KCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

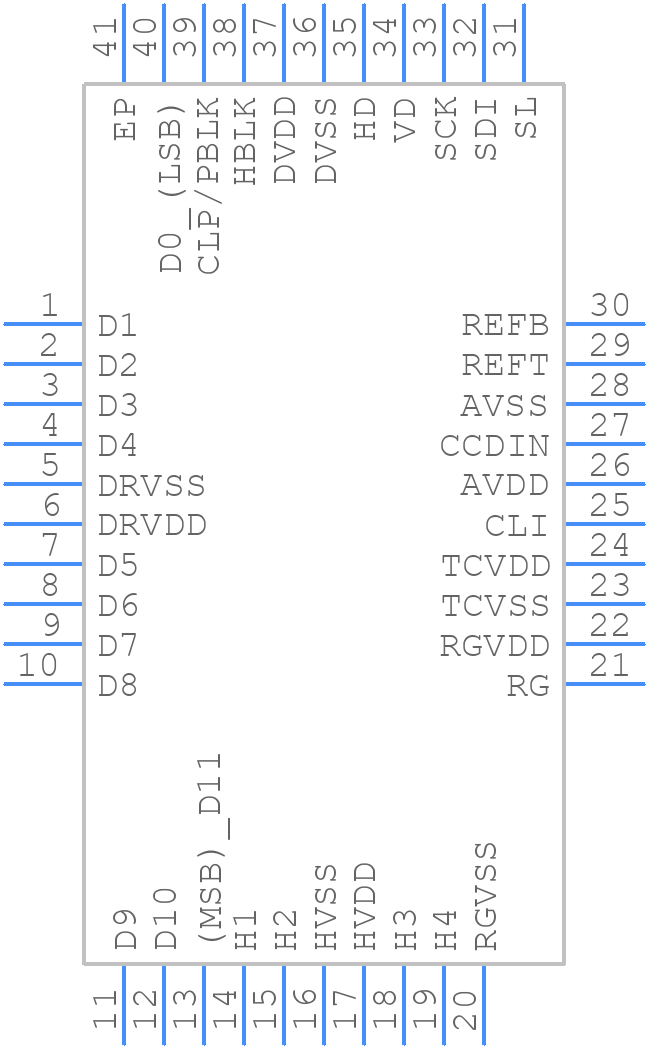

AD9949KCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9949KCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-1 (LFCSP)_BSC
click to zoom

AD9949KCPZ Details

  • Manufacturer Part Number:

    AD9949KCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

AD9949KCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize the performance of the AD9949KCPZ in terms of noise reduction, it is recommended to use a low-noise power supply, decouple the power supplies with capacitors, and use a ground plane to reduce electromagnetic interference (EMI). Additionally, using a shielded enclosure and keeping the analog and digital circuits separate can also help reduce noise.
  • The AD9949KCPZ can support clock frequencies up to 65 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The AD9949KCPZ can be configured for different video formats by programming the device's registers. The device supports various video formats, including NTSC, PAL, and SECAM. The specific configuration will depend on the video format and the application requirements.
  • The typical power consumption of the AD9949KCPZ is around 350 mW. However, the actual power consumption may vary depending on the specific application, clock frequency, and operating conditions.
