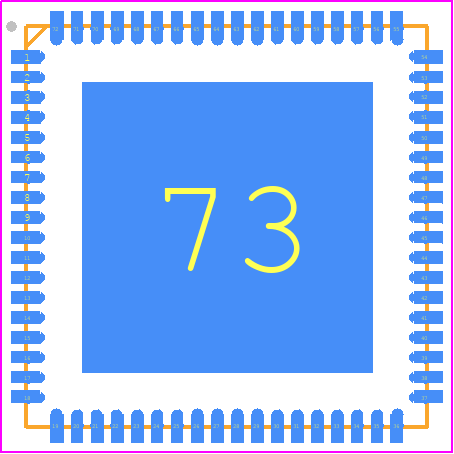

AD9963BCPZ - Analog Devices

AD9963BCPZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AD9963BCPZ?
  The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
• How do I optimize the performance of the AD9963BCPZ in terms of noise and distortion?
  To optimize performance, ensure that the analog input signals are properly terminated, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use a high-quality clock source and ensure that the clock signal is properly terminated.
• What is the maximum clock frequency that the AD9963BCPZ can support?
  The AD9963BCPZ can support clock frequencies up to 100 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock source.
• How do I configure the AD9963BCPZ for different analog input ranges?
  The AD9963BCPZ has a programmable gain amplifier (PGA) that can be configured for different analog input ranges. The PGA gain can be set using the SPI interface, and the input range can be selected using the VREF pin.
• What is the latency of the AD9963BCPZ, and how does it affect my system design?
  The latency of the AD9963BCPZ is approximately 10 clock cycles. This latency should be taken into account when designing the system, especially in applications where real-time processing is required.
