ADA4051-1AKSZ-RL - Analog Devices

Description: Rail-to-Rail Input/Output Op Amp

Download ADA4051-1AKSZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

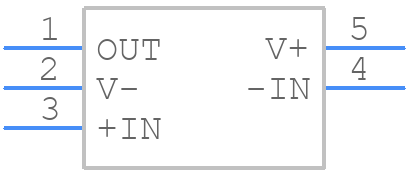

ADA4051-1AKSZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4051-1AKSZ-RL - Analog Devices PCB footprint - Other - Other - SOT65P210X110-5N
click to zoom
3D Models
ADA4051-1AKSZ-RL - Analog Devices - 3D model - Other - SOT65P210X110-5N
click to zoom

ADA4051-1AKSZ-RL Details

  • Manufacturer Part Number:

    ADA4051-1AKSZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOT

  • Package Description:

    ROHS COMPLIANT, MO-203AA, SC-70, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    KS-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.00007 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    17000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP5/6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.06 V/us

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    125

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    1.25 mm

ADA4051-1AKSZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4051-1AKSZ-RL involves keeping the analog and digital sections separate, using a ground plane, and minimizing noise and interference. A 4-layer PCB with a dedicated analog ground layer is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with experienced engineers and follow best practices for high-precision analog design.
  • To ensure the ADA4051-1AKSZ-RL operates within its specified temperature range, you should consider the operating temperature range of the device (−40°C to +125°C), the thermal resistance of the package (θJA = 43.5°C/W), and the power dissipation of the device (PD = 1.35 mW). You should also ensure good heat sinking and airflow around the device. Consult with thermal management experts if necessary.
  • The recommended input voltage range for the ADA4051-1AKSZ-RL is 2.7 V to 5.5 V. Operating the device outside this range may affect its performance, accuracy, and reliability. It's essential to ensure the input voltage is within the specified range to guarantee the device's operation.
  • To handle EMI and EMC issues with the ADA4051-1AKSZ-RL, you should follow best practices for EMI and EMC design, such as using shielding, filtering, and grounding techniques. You should also ensure the device is placed in a suitable location on the PCB, and that the PCB is designed to minimize EMI and EMC issues. Consult with EMI and EMC experts if necessary.
  • The recommended storage temperature range for the ADA4051-1AKSZ-RL is −65°C to +150°C. Storing the device outside this range may affect its performance, accuracy, and reliability. It's essential to ensure the storage temperature is within the specified range to guarantee the device's operation.
