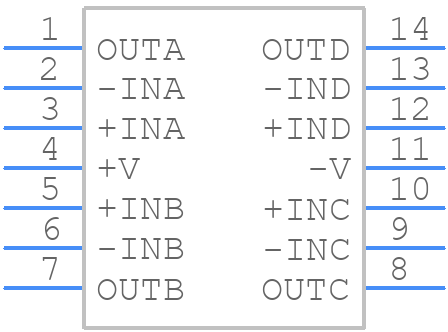

ADA4092-4ARUZ - Analog Devices

ADA4092-4ARUZ Details

• Manufacturer Part Number:

  ADA4092-4ARUZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  ROHS COMPLIANT, MO-153AB-1, TSSOP-14

• Pin Count:

  14

• Manufacturer Package Code:

  RU-14

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.275 µA

• Common-mode Reject Ratio-Min:

  68 dB

• Common-mode Reject Ratio-Nom:

  85 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  2500 µV

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  5 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  YES

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -1.5 V

• Number of Functions:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Slew Rate-Nom:

  0.4 V/us

• Supply Current-Max:

  1.4 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  1.5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  1200

• Voltage Gain-Min:

  17780

• Wideband:

  NO

• Width:

  4.4 mm
