ADA4098-2BRMZ-RL7 - Analog Devices

Description: 50 V, 1 MHz, 165 μA per Channel, Robust, Over-The-Top, Precision Op Amps

Download ADA4098-2BRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

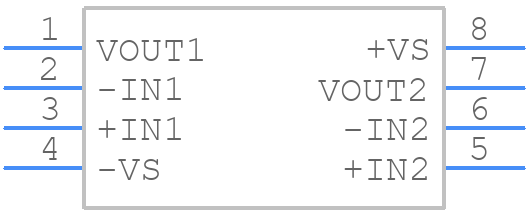

ADA4098-2BRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4098-2BRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)_ 1
click to zoom
3D Models
ADA4098-2BRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (RM-8)_ 1
click to zoom

ADA4098-2BRMZ-RL7 Details

  • Manufacturer Part Number:

    ADA4098-2BRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Bias Current-Max (IIB) @25C:

    0.0007 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    90 µV

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -25 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.2 V/us

  • Slew Rate-Nom:

    0.85 V/us

  • Supply Current-Max:

    0.584 mA

  • Supply Voltage Limit-Max:

    25 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1050

  • Voltage Gain-Min:

    707945

  • Wideband:

    NO

  • Width:

    3 mm

ADA4098-2BRMZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4098-2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The gain resistor (Rg) value depends on the desired gain and the input impedance of the device. A higher Rg value results in higher gain, but also increases noise and distortion. A good starting point is to use the recommended Rg value from the datasheet, and then adjust based on the specific application requirements.
  • The maximum power dissipation of the ADA4098-2 is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W. However, it's recommended to keep the power dissipation below 1W to ensure reliable operation.
  • Yes, the ADA4098-2 can be used in a single-supply configuration, but it requires careful consideration of the input common-mode voltage range and the output voltage swing. The device can operate from a single supply voltage between 5V and 36V, but the input common-mode voltage range is limited to within 2V of the supply voltage.
  • To protect the ADA4098-2 from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter or ferrite beads on the input and output lines. Additionally, use a solid ground plane and decoupling capacitors to reduce noise and radiation.
