ADA4255ACPZ-RL - Analog Devices

Description: Instrumentation Amplifiers PGiA enabling SIL-universal PCTL modules

Download ADA4255ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

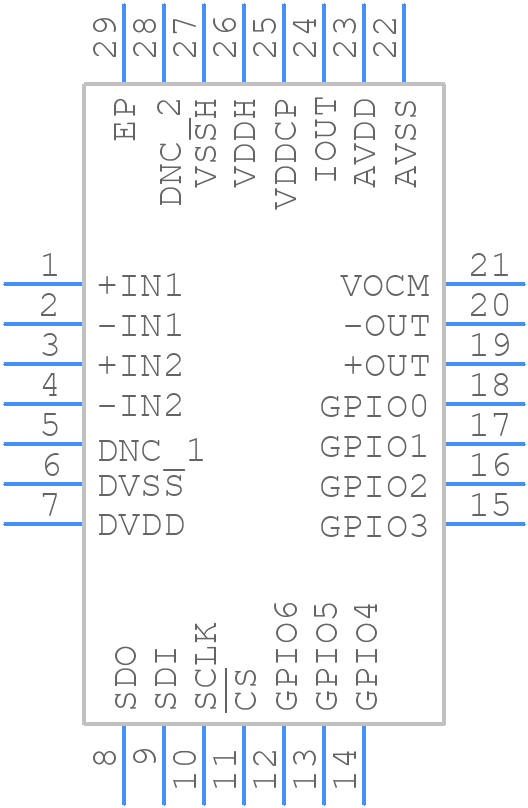

ADA4255ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4255ACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-28-11)
click to zoom
3D Models
ADA4255ACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-28-11)
click to zoom

ADA4255ACPZ-RL Details

  • Manufacturer Part Number:

    ADA4255ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.014 µA

  • Bandwidth (3dB)-Nom:

    1.8 MHz

  • Common-mode Reject Ratio-Min:

    87 dB

  • Input Offset Current-Max (IIO):

    0.0013 µA

  • Input Offset Voltage-Max:

    14 µV

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.0015%

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    3.1 V/us

  • Supply Current-Max:

    16.75 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Voltage Gain-Max:

    128

  • Voltage Gain-Min:

    0.0625

  • Voltage Gain-Nom:

    0.125

  • Width:

    5 mm

ADA4255ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4255ACPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to decouple the power supplies with 10uF and 100nF capacitors.
  • The ADA4255ACPZ-RL requires a dual power supply of ±2.5V to ±15V. It's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. Decoupling capacitors of 10uF and 100nF should be placed close to the power pins, and a 1uF capacitor should be placed between the VPOS and VNEG pins.
  • The ADA4255ACPZ-RL can handle input voltages up to ±10V, but it's recommended to limit the input voltage to ±5V to ensure optimal performance and to prevent damage to the device.
  • The ADA4255ACPZ-RL has a programmable gain amplifier (PGA) that can be configured for gains of 1, 2, 4, 8, 16, 32, or 64. The gain setting is determined by the voltage applied to the GAIN pin, which can be connected to a voltage divider or a digital-to-analog converter (DAC).
  • The typical settling time of the ADA4255ACPZ-RL is around 10us to 15us, depending on the gain setting and the input signal frequency. However, this can vary depending on the specific application and the output load.
