ADA4255ACPZ footprint, schematic symbol and 3D model by Analog Devices

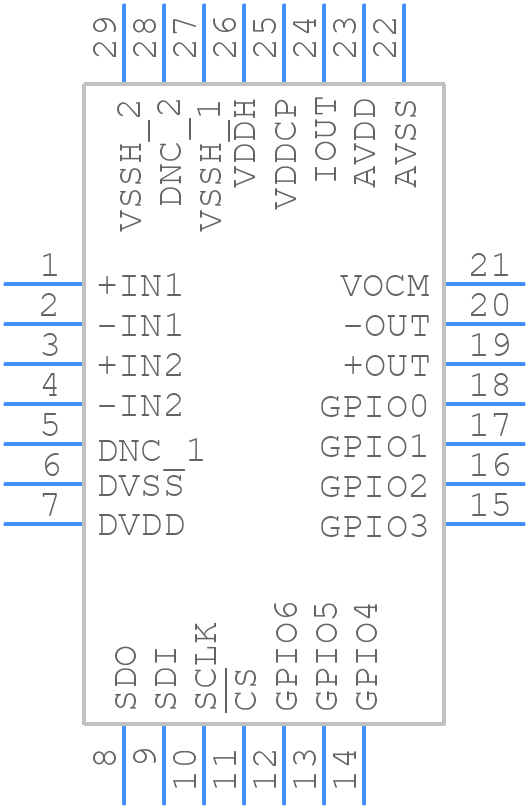

Symbol

click to zoom

PCB Footprints

ADA4255ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-28-11

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADA4255ACPZ
Part Number ADA4255ACPZ
Manufacturer Analog Devices
Pin Count 29
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - CP-28-11
Released Date Nov 14, 2024
Last Modified Date Nov 14, 2024 1:08 PM UTC
Pinout / Pin List Click Here (Member Only)

ADA4255ACPZ Details

Manufacturer Part Number:
ADA4255ACPZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LFCSP-28
Pin Count:
28
Manufacturer Package Code:
CP-28-11
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Amplifier Type:
INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB):
0.014 µA
Bandwidth (3dB)-Nom:
1.8 MHz
Common-mode Reject Ratio-Min:
87 dB
Input Offset Current-Max (IIO):
0.0013 µA
Input Offset Voltage-Max:
14 µV
JESD-30 Code:
S-XQCC-N28
Length:
5 mm
Moisture Sensitivity Level:
3
Non-linearity-Max:
0.0015%
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC28,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Slew Rate-Nom:
3.1 V/us
Supply Current-Max:
16.75 mA
Supply Voltage Limit-Max:
5.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Voltage Gain-Max:
128
Voltage Gain-Min:
0.0625
Voltage Gain-Nom:
0.125
Width:
5 mm

ADA4255ACPZ Frequently Asked Questions (FAQs)

The ADA4255ACPZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADA4255ACPZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and filter settings, optimizing the input impedance, and ensuring proper power supply decoupling. Additionally, it is recommended to consult the device's datasheet and application notes for specific guidance.
The ADA4255ACPZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking and thermal management. This includes using a heat sink, ensuring good airflow, and avoiding high ambient temperatures.
Common issues with the ADA4255ACPZ include noise, distortion, and oscillation. To troubleshoot these issues, it is recommended to check the device's power supply, input signals, and output loading. Additionally, consult the device's datasheet and application notes for specific troubleshooting guidance.
The ADA4255ACPZ is a high-frequency device and requires careful consideration of electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, it is recommended to use shielding, filtering, and grounding techniques, as well as following proper PCB layout and design practices.

Trust Checks

Community Provided

System Verified

Community Approved

ADA4255ACPZ Overview

Use the download button to access the ADA4255ACPZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADA42, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
