ADA4411-3ARQZ - Analog Devices

Description: ADA4411-3ARQZ, Active Filter, 24-Pin QSOP

Download ADA4411-3ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

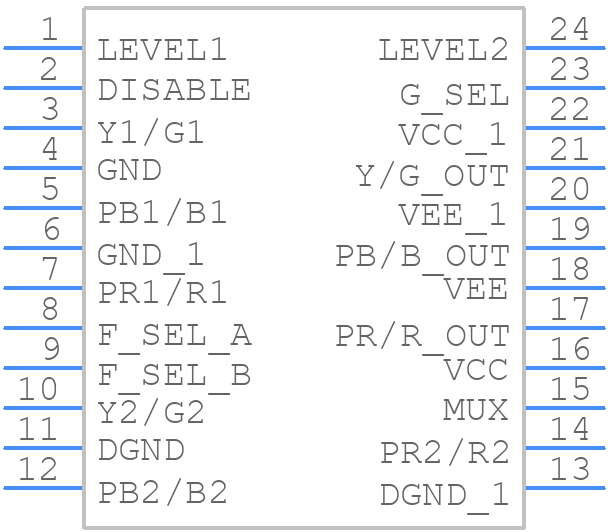

ADA4411-3ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4411-3ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-24 (QSOP)_inches
click to zoom
3D Models
ADA4411-3ARQZ - Analog Devices - 3D model - Small Outline Packages - RQ-24 (QSOP)_inches
click to zoom

ADA4411-3ARQZ Details

  • Manufacturer Part Number:

    ADA4411-3ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    LEAD FREE, MO-137AE, QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RQ-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 4.5V TO 12V SINGLE SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.6614 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7526 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

ADA4411-3ARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4411-3ARQZ involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the VEE pin to a stable negative voltage source or ground. The recommended bias voltage is between 2.7V and 5.5V. Also, ensure that the input common-mode voltage is within the recommended range of 1.2V to 3.5V.
  • The ADA4411-3ARQZ can handle input signal amplitudes up to 2.5Vpp (peak-to-peak) without significant distortion. However, it's recommended to keep the input signal amplitude below 2Vpp to ensure optimal performance and minimal distortion.
  • To filter out high-frequency noise, you can add a low-pass filter (LPF) or a band-pass filter (BPF) at the output of the ADA4411-3ARQZ. A simple RC filter with a cutoff frequency of around 100 kHz to 1 MHz can be effective in reducing high-frequency noise.
  • The recommended operating temperature range for the ADA4411-3ARQZ is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4411-3ARQZ Overview

Use the download button to access the ADA4411-3ARQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA44, or try a keyword search, such as Other Consumer ICs
