ADA4412-3ARQZ - Analog Devices

Description: ANALOG DEVICES - ADA4412-3ARQZ - FILTER MULTI FREQ VIDEO, SMD, 4862

Download ADA4412-3ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

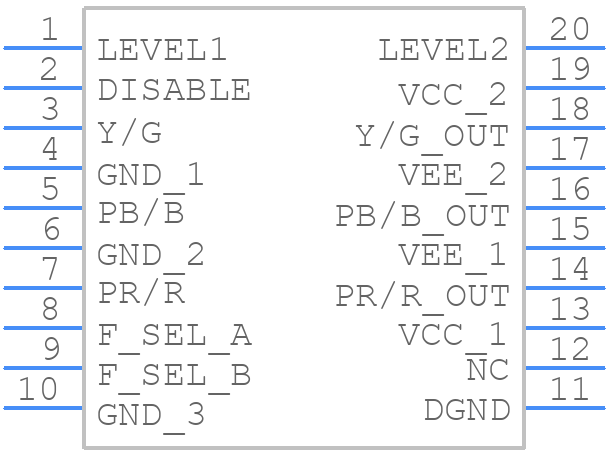

Symbol
ADA4412-3ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4412-3ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Shrink Small Outline Package [QSOP] (RQ-20)
click to zoom
3D Models
ADA4412-3ARQZ - Analog Devices - 3D model - Small Outline Packages - 20-Lead Shrink Small Outline Package [QSOP] (RQ-20)
click to zoom

ADA4412-3ARQZ Details

  • Manufacturer Part Number:

    ADA4412-3ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    LEAD FREE, MO-137AD, QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 4.5V TO 12V SINGLE SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.6614 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7526 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9116 mm

ADA4412-3ARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4412-3ARQZ involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VREF pin to a stable voltage reference, and decouple the VCC pin with a 10uF capacitor to ground. Also, ensure that the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
  • The ADA4412-3ARQZ requires a low-pass filter or an anti-aliasing filter at the input to remove high-frequency noise and prevent aliasing. A simple RC filter with a cutoff frequency of around 100kHz is sufficient for most applications.
  • To troubleshoot issues with the ADA4412-3ARQZ, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input signal is within the recommended range and that the output is not overloaded. If issues persist, try adding decoupling capacitors or adjusting the input signal conditioning.
  • The ADA4412-3ARQZ has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4412-3ARQZ Overview

Use the download button to access the ADA4412-3ARQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA44, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
