ADA4431-1YCPZ-R7 - Analog Devices

Description: Analog Devices ADA4431-1YCPZ-R7, Active Filter, Low Pass Filter, 3rd Order Switched Capacitor, 16-Pin LFCSP UQ

Download ADA4431-1YCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

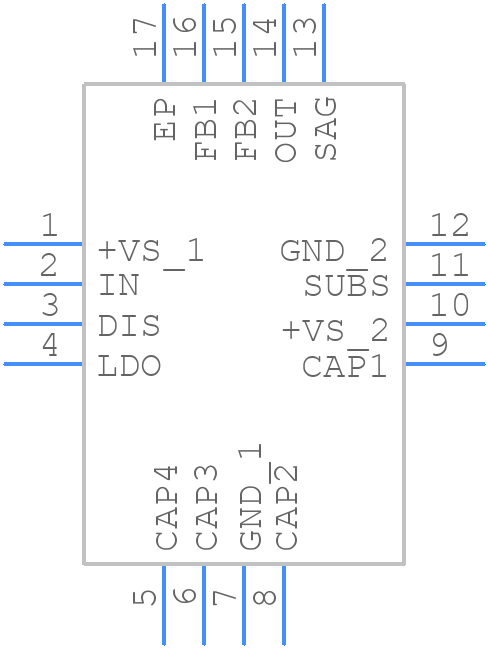

ADA4431-1YCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4431-1YCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-12
click to zoom
3D Models
ADA4431-1YCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-12
click to zoom

ADA4431-1YCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4431-1YCPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:33.529

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-248UEED, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4431-1YCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4431-1YCPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The ADA4431-1YCPZ-R7 requires a single 3.3V power supply. A 10uF decoupling capacitor should be placed close to the device, and a 0.1uF decoupling capacitor should be placed near the power pin. Additionally, a 1uF to 10uF bulk capacitor should be placed near the power source.
  • The ADA4431-1YCPZ-R7 can handle input voltages up to 5.5V, but it is recommended to keep the input voltage within the specified range of 0V to 3.3V to ensure optimal performance and prevent damage to the device.
  • The ADA4431-1YCPZ-R7 has a fixed gain of 1, but it can be configured for a specific gain setting by using external resistors. The gain can be set by connecting a resistor between the output pin and the inverting input pin, and another resistor between the inverting input pin and ground.
  • The typical output impedance of the ADA4431-1YCPZ-R7 is around 100 ohms, but it can vary depending on the output load and frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4431-1YCPZ-R7 Overview

Use the download button to access the ADA4431-1YCPZ-R7 schematic symbol, PCB footprint, and 3D model.
