ADA4432-1BCPZ-R7 - Analog Devices

Description: Video Amp 1 Reconstruction Filter 8-LFCSP-WD (3x3), 2.6 V to 3.6 V , −40°C to +125°C

Download ADA4432-1BCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

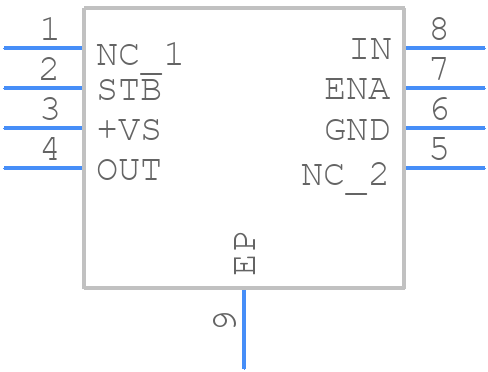

ADA4432-1BCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4432-1BCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-21_2026-2
click to zoom
3D Models
ADA4432-1BCPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-21_2026-2
click to zoom

ADA4432-1BCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4432-1BCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4432-1BCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4432-1BCPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADA4432-1BCPZ-R7 requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the analog supply (VDD) before the digital supply (VDDIO).
  • The recommended clocking scheme for the ADA4432-1BCPZ-R7 is to use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. To minimize clock jitter, it's recommended to use a clock signal with a frequency of 10 MHz to 40 MHz and to keep the clock signal path as short as possible.
  • To optimize the ADA4432-1BCPZ-R7's performance, it's recommended to follow the application note guidelines, use the evaluation board as a reference design, and perform thorough characterization of the device in the specific application. Additionally, it's recommended to consult with Analog Devices' application engineers for customized support.
  • The ADA4432-1BCPZ-R7 has a maximum junction temperature of 150°C. To ensure the device operates within its recommended temperature range, it's recommended to use a heat sink, ensure good airflow, and avoid blocking the airflow around the device. Additionally, it's recommended to follow the thermal management guidelines in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4432-1BCPZ-R7 Overview

Use the download button to access the ADA4432-1BCPZ-R7 schematic symbol, PCB footprint, and 3D model.
