ADA4432-1WBCPZ-R7 - Analog Devices

Description: Video Amp 1 Reconstruction Filter 8-LFCSP-WD (3x3) , 2.6V ~ 3.6V , −40°C to +125°C

Download ADA4432-1WBCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

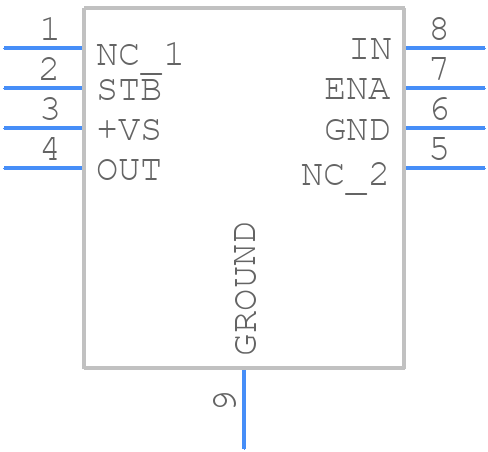

ADA4432-1WBCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4432-1WBCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-21_2026
click to zoom
3D Models
ADA4432-1WBCPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-21_2026
click to zoom

ADA4432-1WBCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4432-1WBCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4432-1WBCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4432-1WBCPZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and decouple it with a 10uF capacitor to ground. The VREF pin should be connected to a stable voltage reference, and the EN pin should be tied to VCC or a digital signal for enable/disable functionality.
  • The ADA4432-1WBCPZ-R7 can handle input voltages up to 5.5V, but the maximum recommended input voltage is 3.6V to ensure optimal performance and prevent damage to the device.
  • To filter out noise and ripple, add a low-pass filter consisting of a series resistor and a capacitor to ground at the output of the ADA4432-1WBCPZ-R7. The values of the resistor and capacitor will depend on the specific application and desired cutoff frequency.
  • The thermal resistance of the ADA4432-1WBCPZ-R7 package is 45°C/W (junction-to-ambient) and 10°C/W (junction-to-case). Proper thermal management is crucial to ensure reliable operation and prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4432-1WBCPZ-R7 Overview

Use the download button to access the ADA4432-1WBCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA44, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
