ADA4830-2BCPZ-R7 - Analog Devices

Description: Differential Amplifiers High Speed Difference Amplifier with Input Short-to-Battery Protection

Download ADA4830-2BCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

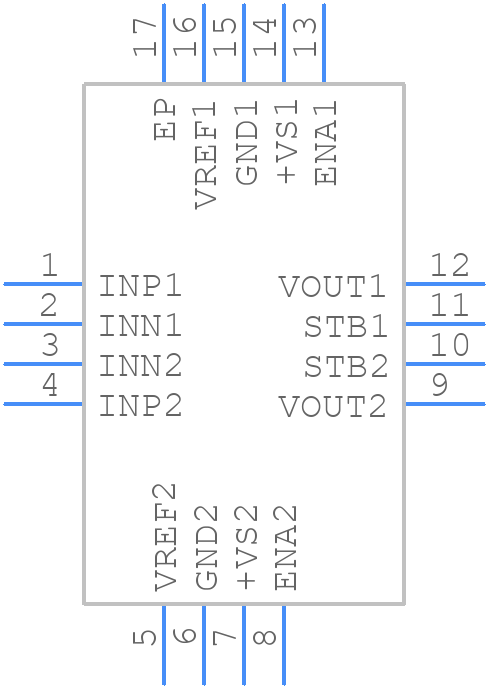

ADA4830-2BCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4830-2BCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)
click to zoom
3D Models
ADA4830-2BCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)
click to zoom

ADA4830-2BCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4830-2BCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    41 dB

  • Common-mode Reject Ratio-Nom:

    54 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    165 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    8.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    0.49

  • Wideband:

    YES

  • Width:

    3 mm

ADA4830-2BCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4830-2BCPZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 0.1uF and 10uF capacitors to ground. The recommended voltage range is 2.7V to 5.5V. Additionally, ensure the input common-mode voltage is within the specified range.
  • For optimal performance, terminate the input with a 50Ω resistor to ground, and the output with a 50Ω resistor to the load. This ensures maximum power transfer and minimizes signal reflections.
  • To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure good PCB layout practices, such as minimizing loop areas and using a solid ground plane.
  • The ADA4830-2BCPZ-R7 has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or a thermal land on the PCB. Use thermal interface material (TIM) if necessary. Keep the ambient temperature within the specified range (−40°C to +125°C) to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4830-2BCPZ-R7 Overview

Use the download button to access the ADA4830-2BCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA48, or try a keyword search, such as Operational Amplifiers
