ADA4830-2WBCPZ-R7 - Analog Devices

Description: Input overvoltage (short-to-battery) protection of up to 18 V Short-to-battery output flag for wire diagnostics Wide input common-mode range with single 5 V supply High performance video amplifier with 0.50 V/V gain −3 dB bandwidth of 84 MHz 250 V/µs slew rate (2 V step) Excellent video specifications 0.1 dB flatness to 28 MHz SNR of 73 dB to 15 MHz Differential gain/phase of 0.1%/0.1° Wide supply range: 2.9 V to 5.5 V Enable/output disable mode Space saving 3 mm × 3 mm LFCSP package Wide opera

Download ADA4830-2WBCPZ-R7 Model

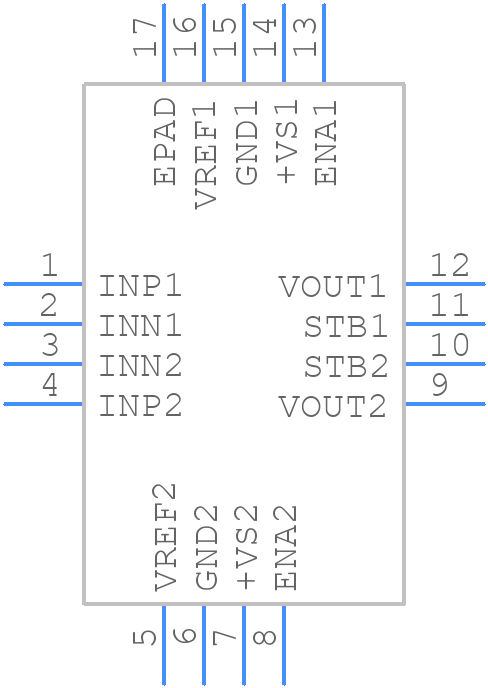

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4830-2WBCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body, Very Very Thin Quad (CP-16-22)
click to zoom
3D Models
ADA4830-2WBCPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body, Very Very Thin Quad (CP-16-22)
click to zoom

ADA4830-2WBCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4830-2WBCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    41 dB

  • Common-mode Reject Ratio-Nom:

    54 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    165 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    8.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    0.49

  • Wideband:

    YES

  • Width:

    3 mm

ADA4830-2WBCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4830-2 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistor values depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific requirements of your application. You can also use Analog Devices' online gain calculator tool to help with the selection.
  • The maximum power dissipation of the ADA4830-2 is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the device in a well-ventilated area. You can also reduce the power dissipation by reducing the supply voltage or the output current.
  • Yes, the ADA4830-2 can be used as a single-ended amplifier. To do so, connect the negative input to ground, and use the positive input as the signal input. You'll need to adjust the gain resistor values accordingly, and keep in mind that the single-ended configuration will have a lower input impedance and a higher noise floor compared to the differential configuration.
  • To filter out noise and interference, you can add external filters, such as RC filters or ferrite beads, to the input or output of the ADA4830-2. You can also use shielding and grounding techniques to reduce electromagnetic interference. Additionally, consider using a low-pass filter or a notch filter to remove specific frequency bands that are causing issues.
