ADA4841-2YCPZ-R2 - Analog Devices

Description: Analog Devices ADA4841-2YCPZ-R2, Dual Low Noise Op Amp, 80MHz Rail-Rail, 2.7 → 12 V, 8-Pin LFCSP

Download ADA4841-2YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

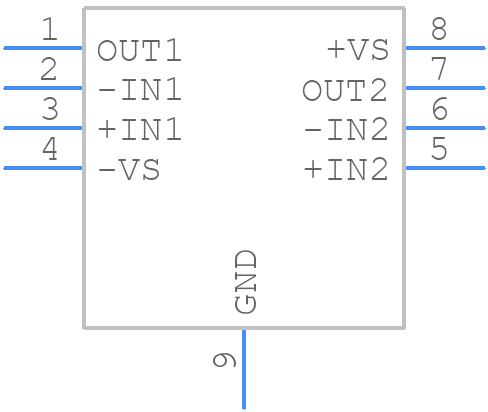

ADA4841-2YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4841-2YCPZ-R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-11 (LFCSP_WD)
click to zoom
3D Models
ADA4841-2YCPZ-R2 - Analog Devices - 3D model - Small Outline No-lead - CP-8-11 (LFCSP_WD)
click to zoom

ADA4841-2YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4841-2YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    5.3 µA

  • Bias Current-Max (IIB) @25C:

    5.3 µA

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    115 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    300 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Min:

    10 V/us

  • Slew Rate-Nom:

    13 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    112000

  • Wideband:

    YES

  • Width:

    3 mm

ADA4841-2YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4841-2YCPZ-R2 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and crosstalk.
  • To ensure the ADA4841-2YCPZ-R2 operates within its recommended operating conditions, verify that the supply voltage is within the specified range (2.7V to 5.5V), the operating temperature is within the specified range (-40°C to 125°C), and the input signals are within the specified common-mode voltage range.
  • The recommended input impedance for the ADA4841-2YCPZ-R2 is 1 kΩ or higher to ensure optimal performance and minimize input current noise. A higher input impedance can help reduce the input current noise and improve the overall signal-to-noise ratio.
  • To filter out high-frequency noise in the output of the ADA4841-2YCPZ-R2, a low-pass filter can be used. A simple RC filter with a cutoff frequency set to the desired frequency range can be effective in reducing high-frequency noise. Additionally, using a ferrite bead or a common-mode choke can help filter out high-frequency noise.
  • The recommended output load impedance for the ADA4841-2YCPZ-R2 is 2 kΩ or higher to ensure optimal performance and minimize output voltage droop. A higher output load impedance can help reduce the output voltage droop and improve the overall signal integrity.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADA4841-2YCPZ-R2 Overview

Use the download button to access the ADA4841-2YCPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA48, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
