ADA4850-1YCPZ-R2 - Analog Devices

Description: Analog Devices ADA4850-1YCPZ-R2 High Speed Op Amp, 175MHz Rail-Rail, 2.7 → 6 V, 8-Pin LFCSP

Download ADA4850-1YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

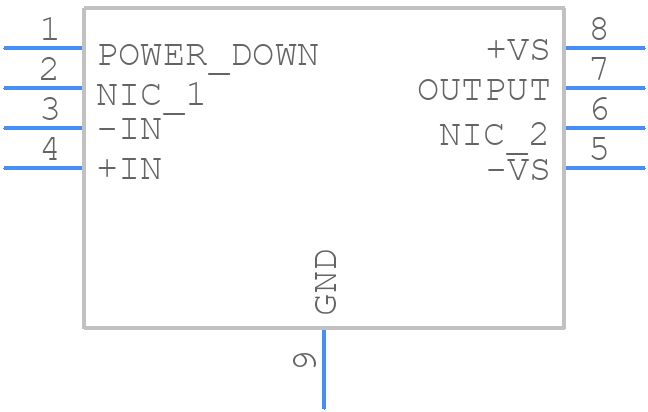

ADA4850-1YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4850-1YCPZ-R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-13 (LFCSP)
click to zoom
3D Models
ADA4850-1YCPZ-R2 - Analog Devices - 3D model - Small Outline No-lead - CP-8-13 (LFCSP)
click to zoom

ADA4850-1YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4850-1YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    4.4 µA

  • Common-mode Reject Ratio-Min:

    76 dB

  • Common-mode Reject Ratio-Nom:

    108 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    4100 µV

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Nom:

    110 V/us

  • Supply Current-Max:

    2.8 mA

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    100000

  • Wideband:

    YES

  • Width:

    3 mm

ADA4850-1YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4850-1YCPZ-R2 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, it's essential to follow the datasheet's guidelines for pin connections and decoupling capacitors.
  • To ensure the ADA4850-1YCPZ-R2 operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified power supply voltage and current ratings to prevent overheating.
  • The recommended power-up sequence for the ADA4850-1YCPZ-R2 is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal biasing and reference circuits are established before the input signals are applied, which helps to prevent latch-up and ensures proper operation.
  • To troubleshoot common issues with the ADA4850-1YCPZ-R2, such as oscillations or instability, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Verify that the power supply voltage and decoupling capacitors are correct, and that the input and output signals are within the specified ranges. Use an oscilloscope to check for oscillations or ringing on the output, and ensure that the device is operated within its specified temperature range.
  • The ADA4850-1YCPZ-R2 is a high-reliability device, but it's essential to follow the recommended design and layout guidelines to ensure its reliability in safety-critical applications. Additionally, it's recommended to perform thorough testing and validation to ensure the device meets the required safety and reliability standards.
