ADA4853-3YRUZ - Analog Devices

Description: Low Power, Rail-to-Rail Output, Video Op Amp with Ultralow Power

Download ADA4853-3YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

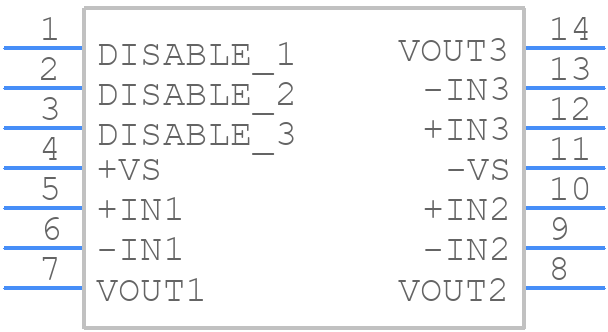

ADA4853-3YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4853-3YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
ADA4853-3YRUZ - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

ADA4853-3YRUZ Details

  • Manufacturer Part Number:

    ADA4853-3YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1.7 µA

  • Bias Current-Max (IIB) @25C:

    1.7 µA

  • Common-mode Reject Ratio-Min:

    69 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Min:

    88 V/us

  • Slew Rate-Nom:

    100 V/us

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    3981.071

  • Wideband:

    YES

  • Width:

    4.4 mm

ADA4853-3YRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4853-3YRUZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a low-ESR capacitor for power supply decoupling.
  • To ensure the ADA4853-3YRUZ operates within its specified temperature range, it's essential to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. Additionally, consider using thermal management techniques such as thermal pads or heat sinks.
  • When selecting input and output capacitors for the ADA4853-3YRUZ, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a suitable capacitance value (e.g., 10nF to 100nF) and voltage rating (e.g., 10V to 25V) is recommended.
  • To troubleshoot common issues with the ADA4853-3YRUZ, start by checking the PCB layout, power supply, and input/output connections. Ensure that the device is properly decoupled, and the input and output traces are short and symmetrical. Also, verify that the device is operating within its specified temperature range and that the input signal is within the recommended range.
  • Operating the ADA4853-3YRUZ beyond its specified supply voltage range can lead to reduced performance, increased power consumption, and potentially even damage to the device. It's essential to ensure that the supply voltage remains within the recommended range (e.g., 2.7V to 5.5V) to guarantee optimal performance and reliability.
