ADA4857-2YCPZ-R2 - Analog Devices

Description: High Speed Operational Amplifiers Ultralow Dist LoPwr High Speed OP Amp

Download ADA4857-2YCPZ-R2 Model

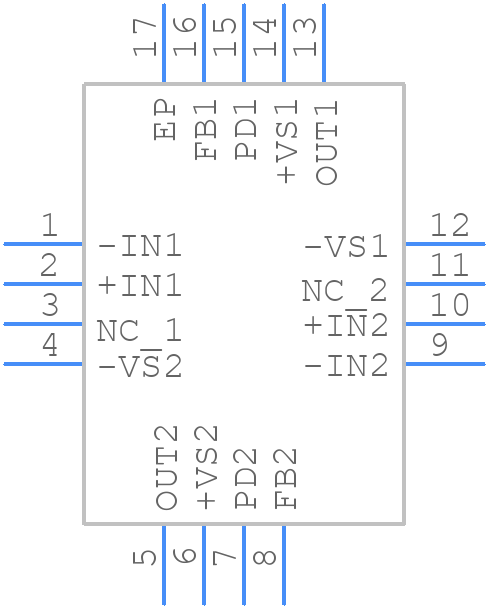

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4857-2YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-23 (LFCSP)
click to zoom
3D Models
ADA4857-2YCPZ-R2 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-16-23 (LFCSP)
click to zoom

ADA4857-2YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4857-2YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3.3 µA

  • Bias Current-Max (IIB) @25C:

    3.3 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4.5 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Min:

    0.7 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    595000

  • Voltage Gain-Min:

    50000

  • Wideband:

    YES

  • Width:

    4 mm

ADA4857-2YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4857-2YCPZ-R2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure the ADA4857-2YCPZ-R2 operates within the specified temperature range, make sure to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. The device is rated for operation from -40°C to +125°C.
  • The recommended power-up sequence for the ADA4857-2YCPZ-R2 is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the device is properly biased and configured before signal processing begins.
  • To handle ESD protection for the ADA4857-2YCPZ-R2, use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins. Follow proper handling and storage procedures to prevent ESD damage.
  • The recommended input and output termination for the ADA4857-2YCPZ-R2 depends on the specific application. For most applications, a 50Ω termination is recommended for the input and output pins. However, the optimal termination may vary depending on the specific signal frequencies and impedances involved.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4857-2YCPZ-R2 Overview

Use the download button to access the ADA4857-2YCPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA48, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to ADA4857-2YCPZ-R2

Showing 0 results

ADA4857-2YCPZ-R2 Alternates

Showing results

Image Part Number Model
Part Image ADA4857-2YCPZ-R7 Analog Devices Inc

Operational Amplifier, 2 Func, 4500uV Offset-Max, BIPolar

Part Image ADA4857-2YCPZ-RL Analog Devices Inc

Operational Amplifier, 2 Func, 4.5uV Offset-Max, BIPolar
