ADA4927-2YCPZ-R7 - Analog Devices

Description: Differential Amplifiers 208-aLw Distortion Crnt Fdbck ADC Driver

Download ADA4927-2YCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

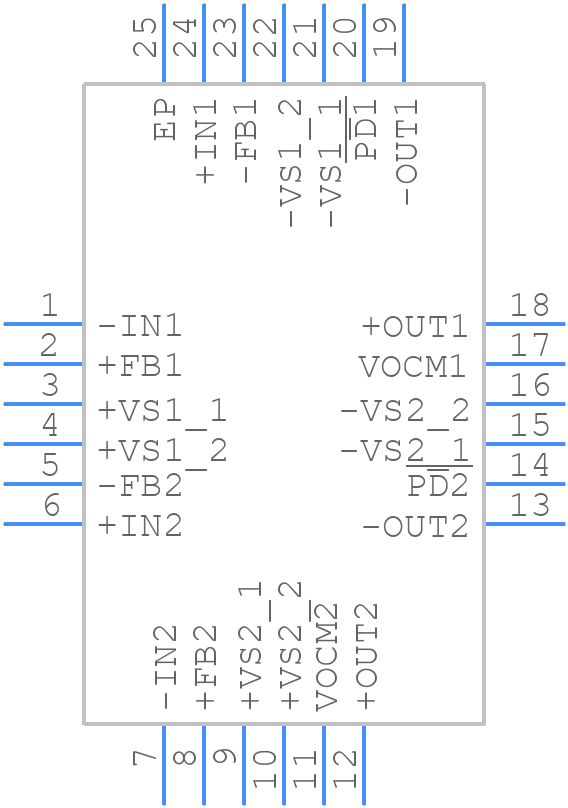

ADA4927-2YCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4927-2YCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7
click to zoom
3D Models
ADA4927-2YCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7
click to zoom

ADA4927-2YCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4927-2YCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-2, LFCSP-16

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADA4927-2YCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4927-2YCPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4927-2YCPZ-R7 for low noise performance, use a low-noise power supply, keep the input impedance low, and use a high-quality, low-noise clock source. Additionally, consider using a noise-reducing filter at the input and using a shielded enclosure to minimize electromagnetic interference.
  • The ADA4927-2YCPZ-R7 can support clock frequencies up to 1.2 GHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock source.
  • To ensure the ADA4927-2YCPZ-R7 is properly calibrated, follow the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the internal calibration registers accordingly. Additionally, consider using an external calibration source and verifying the calibration results using a precision measurement instrument.
  • The typical power consumption of the ADA4927-2YCPZ-R7 is around 1.3W, but this can vary depending on the specific application, clock frequency, and operating conditions.
