ADA4927-2YCPZ-RL - Analog Devices

Description: Ultralow Distortion Current Feedback Differential ADC Driver

Download ADA4927-2YCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

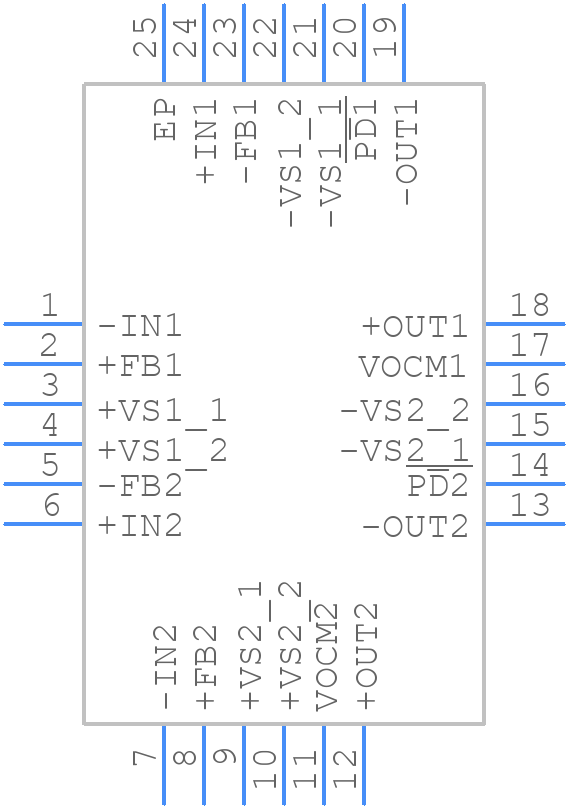

ADA4927-2YCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4927-2YCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7
click to zoom
3D Models
ADA4927-2YCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7
click to zoom

ADA4927-2YCPZ-RL Details

  • Manufacturer Part Number:

    ADA4927-2YCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    7.6 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,31

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADA4927-2YCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4927-2 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4927-2's performance for high-frequency applications, it's recommended to use a low-ESR capacitor for decoupling, minimize the length of the input traces, and use a high-frequency-compatible layout. Additionally, the device's bandwidth can be optimized by adjusting the gain and the output load impedance.
  • The ADA4927-2 has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The ADA4927-2 has built-in ESD protection, but it's still recommended to take precautions during handling and assembly. This includes using an ESD wrist strap, an ESD mat, and ESD-protected packaging. Additionally, it's recommended to use a voltage limiter or a surge protector to prevent overvoltage conditions.
  • The recommended power-up sequence for the ADA4927-2 is to power up the analog supply (VCC) first, followed by the digital supply (VDD). This ensures that the device's internal biasing and reference circuits are properly initialized.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4927-2YCPZ-RL Overview

Use the download button to access the ADA4927-2YCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Line Driver or Receivers
