ADA4930-1YCPZ-R2 - Analog Devices

Description: Differential Amplifiers UltraLow Dist Low Vltg ADC Driver

Download ADA4930-1YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

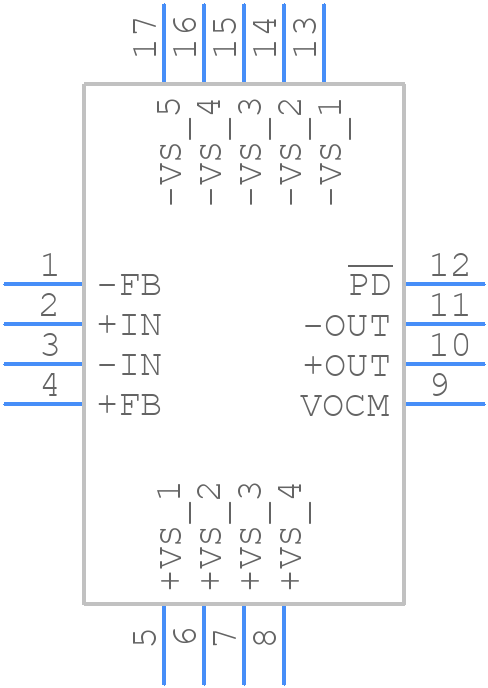

Symbol
ADA4930-1YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4930-1YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-21)
click to zoom
3D Models
ADA4930-1YCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-21)
click to zoom

ADA4930-1YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4930-1YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    36 µA

  • Bias Current-Max (IIB) @25C:

    -36 µA

  • Common-mode Reject Ratio-Nom:

    82 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3100 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    2877 V/us

  • Supply Current-Max:

    40 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    0.99

  • Wideband:

    NO

  • Width:

    3 mm

ADA4930-1YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4930-1YCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4930-1YCPZ-R2's performance for high-frequency applications, use a low-ESR capacitor for the power supply decoupling, minimize the PCB trace lengths, and use a high-frequency-compatible layout. Additionally, consider using a shielded enclosure to reduce electromagnetic interference (EMI).
  • The ADA4930-1YCPZ-R2 has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The ADA4930-1YCPZ-R2 is designed to operate from a single 3.3V or 5V supply. However, it's possible to use the device with a different supply voltage by using an external voltage regulator or a voltage translator. Consult the datasheet and application notes for more information.
  • To troubleshoot common issues with the ADA4930-1YCPZ-R2, start by checking the power supply voltage, PCB layout, and signal routing. Use an oscilloscope to measure the output signal and check for noise or distortion. Consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been verified by system checks.
System Verified
