ADA4932-1YCPZ-R2 - Analog Devices

Description: ADA4932-1YCPZ-R2, Differential Amplifier 5, 9V 16-Pin LFCSP EP

Download ADA4932-1YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

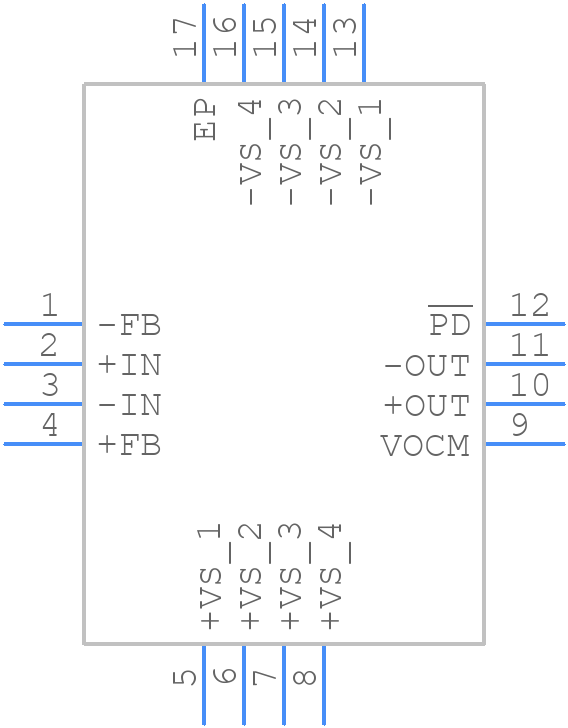

ADA4932-1YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4932-1YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADA4932-1YCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADA4932-1YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4932-1YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    3.2 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4932-1YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4932-1YCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4932-1YCPZ-R2's performance for high-frequency applications, use a low-ESR capacitor for decoupling, minimize the length of the input traces, and use a high-frequency-compatible PCB material. Additionally, consider using a differential amplifier configuration to reduce noise and improve common-mode rejection.
  • The recommended power-up sequence for the ADA4932-1YCPZ-R2 is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the internal biasing circuitry is properly initialized, preventing latch-up or damage to the device.
  • To ensure the ADA4932-1YCPZ-R2's output is properly terminated, use a 50-ohm termination resistor in series with a 50-ohm load resistor, and place them as close to the output pins as possible. This will help to minimize reflections and ensure optimal signal integrity.
  • The maximum allowable capacitive load for the ADA4932-1YCPZ-R2's output is 100 pF. Exceeding this limit can cause the device to oscillate or become unstable. To ensure stability, it's recommended to use a capacitive load of 10 pF or less, and to add a series resistor to the output if a larger capacitive load is required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4932-1YCPZ-R2 Overview

Use the download button to access the ADA4932-1YCPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
