ADA4932-1YCPZ-RL - Analog Devices

Description: SP Amp DIFF AMP Single ±5.5V/11V 16-Pin LFCSP EP T/R

Download ADA4932-1YCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

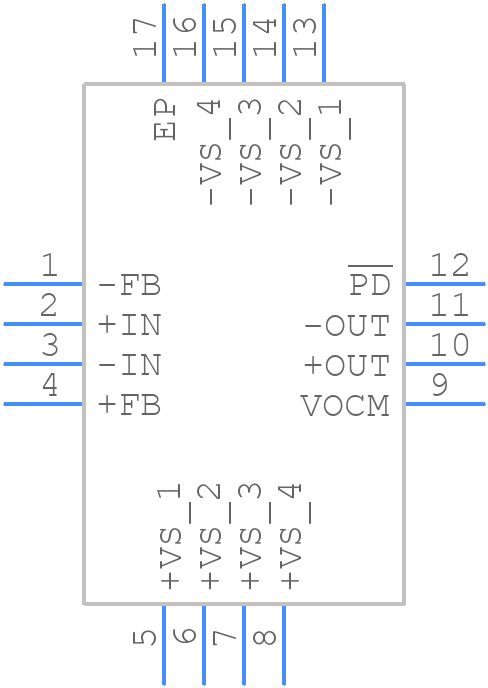

ADA4932-1YCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4932-1YCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADA4932-1YCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADA4932-1YCPZ-RL Details

  • Manufacturer Part Number:

    ADA4932-1YCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    3.2 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADA4932-1YCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4932-1YCPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To optimize the ADA4932-1YCPZ-RL's performance for high-frequency applications, use a low-pass filter at the input to remove high-frequency noise, and ensure that the input impedance is matched to the source impedance. Additionally, use a high-frequency capable PCB material and layout, and consider using a shielded enclosure to reduce electromagnetic interference.
  • The maximum power dissipation of the ADA4932-1YCPZ-RL is 1.4W. To ensure that it does not overheat, use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Additionally, use a PCB with a thermal via to dissipate heat, and consider using a thermal interface material to improve heat transfer.
  • To troubleshoot common issues with the ADA4932-1YCPZ-RL, start by checking the power supply voltage and ensuring that it is within the recommended range. Check for oscillations or instability by monitoring the output voltage with an oscilloscope. Ensure that the input and output capacitors are properly sized and placed, and check for any signs of overheating. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the ADA4932-1YCPZ-RL can be used in a single-supply configuration. To do so, connect the negative supply pin (V-) to ground, and use a voltage divider to generate a virtual ground at the midpoint of the supply voltage. Ensure that the input signal is referenced to this virtual ground, and use a capacitor to decouple the input signal from the power supply.
