ADA4932-2YCPZ-RL - Analog Devices

Description: Differential Amplifiers Lw Cst/Lw Pwr Diff ADC Driver

Download ADA4932-2YCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

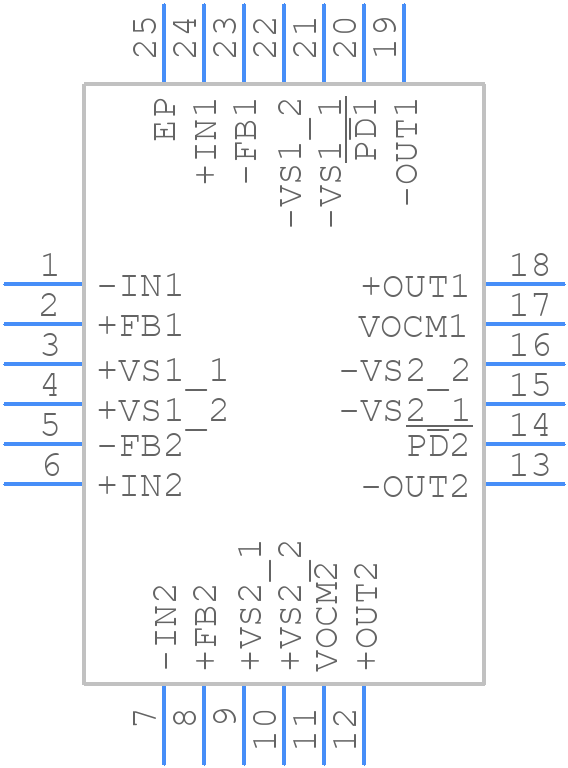

ADA4932-2YCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4932-2YCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14)_2022
click to zoom
3D Models
ADA4932-2YCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-14)_2022
click to zoom

ADA4932-2YCPZ-RL Details

  • Manufacturer Part Number:

    ADA4932-2YCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    3.2 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADA4932-2YCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4932-2 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADA4932-2 requires a dual supply voltage (±2.5V to ±5.5V) and a common-mode voltage (VCM) that is within the range of 1.2V to 3.8V. Ensure that the bias voltage is stable and noise-free, and that the input signals are within the recommended common-mode range.
  • The ADA4932-2 can handle input signal amplitudes up to 10Vpp differential, but the maximum amplitude is limited by the supply voltage and the desired output signal swing. For optimal performance, it's recommended to keep the input signal amplitude below 5Vpp differential.
  • The ADA4932-2 has a built-in antialiasing filter, but additional filtering may be required depending on the application. Use a low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) to filter out noise and aliasing. A 2nd-order or 3rd-order Butterworth filter is recommended.
  • The ADA4932-2 can operate with clock frequencies up to 100MHz, but the recommended clock frequency depends on the application and the desired output data rate. A clock frequency of 10MHz to 50MHz is typical for most applications.
