ADA4937-1YCPZ-R2 - Analog Devices

Description: Analog Devices ADA4937-1YCPZ-R2, Differential Amplifier 1900MHz 16-Pin LFCSP VQ

Download ADA4937-1YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

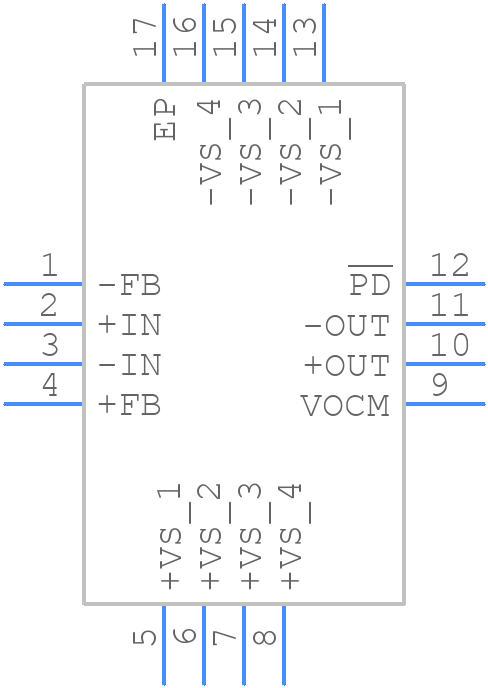

Symbol
ADA4937-1YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4937-1YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP]
click to zoom
3D Models
ADA4937-1YCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP]
click to zoom

ADA4937-1YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4937-1YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADA4937-1YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4937-1YCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To optimize the ADA4937-1YCPZ-R2's performance for high-frequency applications, use a low-ESR capacitor for the power supply decoupling, minimize the length of the input traces, and use a high-frequency-compatible PCB material. Additionally, consider using a differential amplifier configuration to reduce common-mode noise.
  • The ADA4937-1YCPZ-R2 has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider the specific application's temperature requirements and ensure the device is operated within its recommended temperature range.
  • To ensure the ADA4937-1YCPZ-R2's ESD protection is effective, follow proper handling and storage procedures, use an ESD-protected workstation, and implement ESD protection circuits in the system design. Additionally, consider using a TVS (Transient Voltage Suppressor) diode or a Zener diode to protect the device from voltage transients.
  • The recommended power-up sequence for the ADA4937-1YCPZ-R2 is to power up the analog supply (VCC) before the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent unwanted digital noise from affecting the analog signals.
