ADA4937-1YCPZ-R7 - Analog Devices

Description: Ultralow Distortion Differential ADC Driver (Single)

Download ADA4937-1YCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

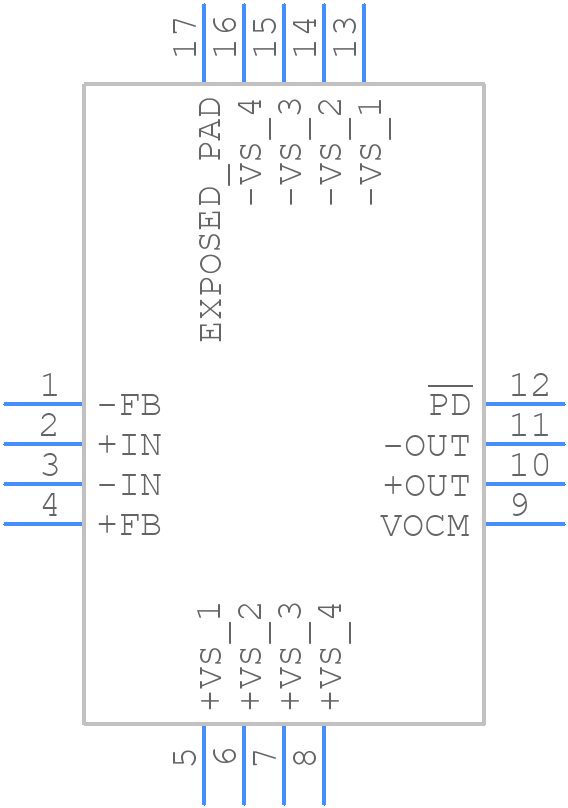

ADA4937-1YCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4937-1YCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADA4937-1YCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADA4937-1YCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4937-1YCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADA4937-1YCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4937-1YCPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the power supply decoupling.
  • To optimize the ADA4937-1YCPZ-R7 for low noise performance, use a low-noise power supply, minimize the input capacitance, and use a high-impedance input source. Additionally, consider using a noise-reducing filter at the input and ensuring that the device is operated within its recommended operating conditions.
  • The ADA4937-1YCPZ-R7 can handle input voltages up to ±10V, but it's recommended to limit the input voltage to ±5V to ensure optimal performance and to prevent damage to the device.
  • To ensure the ADA4937-1YCPZ-R7 is properly biased, connect the VREF pin to a stable voltage reference, and ensure that the input common-mode voltage is within the recommended range. Additionally, ensure that the device is operated within its recommended operating conditions, including temperature and power supply voltage.
  • The recommended power-up sequence for the ADA4937-1YCPZ-R7 is to first apply the power supply voltage (VCC) and then the analog input signal. This ensures that the device is properly biased and that the input signal is not distorted during power-up.
