ADA4937-2YCPZ-R2 - Analog Devices

Description: Ultralow Distortion Differential ADC Driver

Download ADA4937-2YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

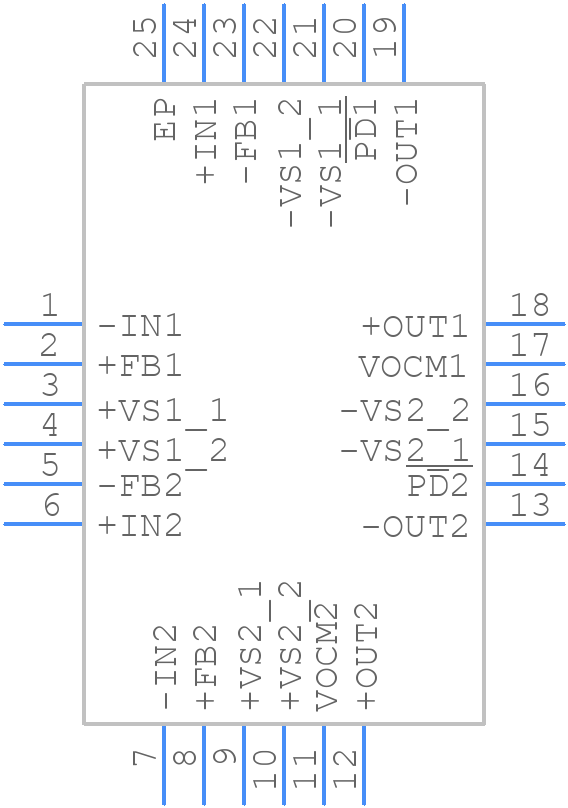

ADA4937-2YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4937-2YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom
3D Models
ADA4937-2YCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom

ADA4937-2YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4937-2YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-2, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.9 V

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADA4937-2YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4937-2YCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To optimize the ADA4937-2YCPZ-R2's performance for high-frequency applications, it's recommended to use a low-ESR capacitor for the power supply decoupling, minimize the PCB trace lengths, and use a high-frequency-compatible layout. Additionally, the device's input and output impedance should be matched to the transmission line impedance to minimize reflections and ensure optimal signal integrity.
  • The recommended power-up sequence for the ADA4937-2YCPZ-R2 is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the device's internal circuitry is properly initialized and prevents latch-up or damage.
  • To ensure the ADA4937-2YCPZ-R2's ESD protection is effective, it's recommended to follow proper ESD handling procedures during device handling and assembly, use ESD-protective packaging and storage, and implement ESD protection circuits on the PCB, such as TVS diodes or ESD arrays.
  • The recommended thermal management strategy for the ADA4937-2YCPZ-R2 involves using a heat sink or thermal pad on the device's exposed pad, ensuring good airflow around the device, and using thermal interface materials to minimize thermal resistance. Additionally, the device's power consumption should be minimized by optimizing the system's power management.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADA4937-2YCPZ-R2 Overview

Use the download button to access the ADA4937-2YCPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
