ADA4937-2YCPZ-RL - Analog Devices

Description: Ultralow Distortion Differential ADC Driver (Dual)

Download ADA4937-2YCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

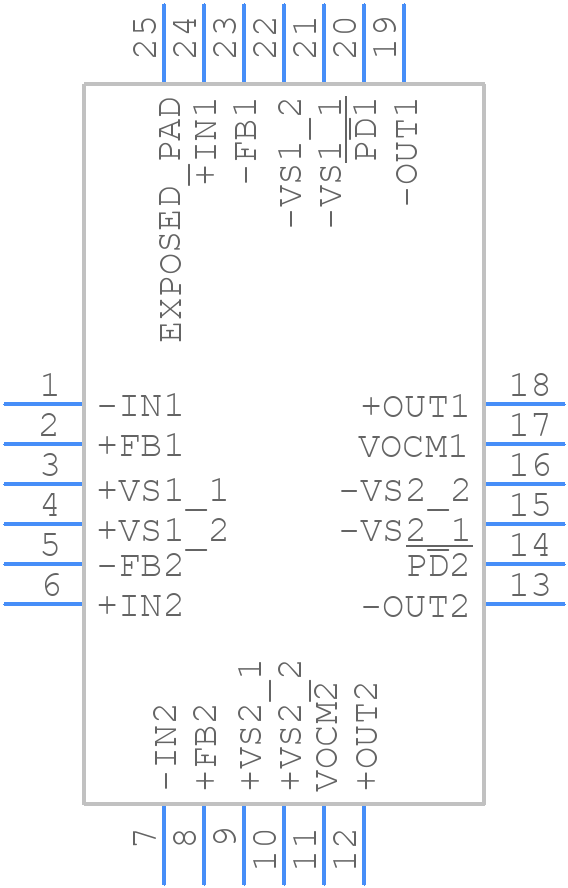

ADA4937-2YCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4937-2YCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10_2022
click to zoom
3D Models
ADA4937-2YCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10_2022
click to zoom

ADA4937-2YCPZ-RL Details

  • Manufacturer Part Number:

    ADA4937-2YCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-2, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADA4937-2YCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4937-2 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4937-2's performance for high-frequency applications, it's recommended to use a low-ESR capacitor for decoupling, minimize the length of the input traces, and use a high-frequency-compatible layout. Additionally, the device's bandwidth can be optimized by adjusting the gain and the output load impedance.
  • The ADA4937-2 has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To ensure the ADA4937-2's ESD protection, it's recommended to handle the device with ESD-safe equipment, use ESD-protective packaging, and follow proper PCB assembly and handling procedures. Additionally, the device has built-in ESD protection diodes that can withstand up to ±2 kV of ESD voltage.
  • The recommended power supply voltage for the ADA4937-2 is 3.3 V or 5 V, with a maximum voltage of 5.5 V. It's recommended to use a low-noise, low-ripple power supply to ensure optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4937-2YCPZ-RL Overview

Use the download button to access the ADA4937-2YCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
