ADA4950-1YCPZ-R2 - Analog Devices

Description: Low Power, Selectable Gain Differential ADC Driver, G = 1, 2, 3

Download ADA4950-1YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

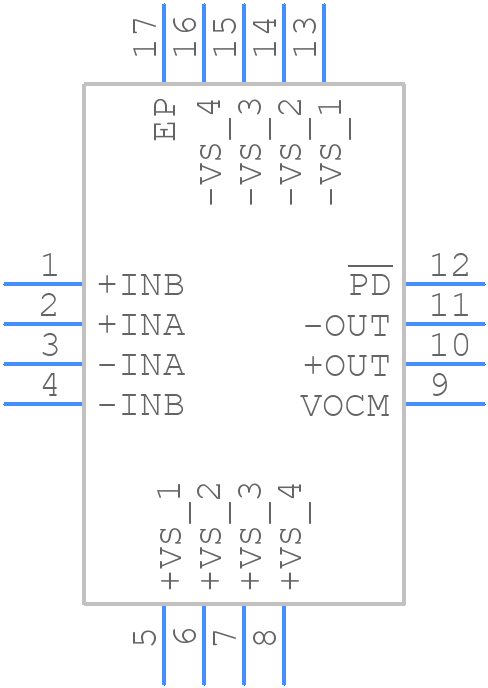

ADA4950-1YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4950-1YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-pin LFCSP 3*3
click to zoom
3D Models
ADA4950-1YCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - 16-pin LFCSP 3*3
click to zoom

ADA4950-1YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4950-1YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADA4950-1YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4950-1YCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To optimize the ADA4950-1YCPZ-R2's performance for high-frequency applications, it's recommended to use a low-ESR capacitor for the power supply decoupling, minimize the PCB trace lengths, and use a high-frequency-compatible layout. Additionally, the device's input and output impedance should be matched to minimize signal reflections and ensure maximum power transfer.
  • The recommended power-up sequence for the ADA4950-1YCPZ-R2 is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the device's internal biasing and reference circuits are properly initialized before the digital circuitry is powered up.
  • To troubleshoot common issues with the ADA4950-1YCPZ-R2, it's recommended to first check the power supply voltage and ensure it's within the recommended range. Next, verify that the input and output impedance are properly matched, and that the device is properly decoupled. If the issue persists, check for any layout or PCB-related issues, such as noise coupling or signal reflections.
