ADA4950-1YCPZ-R7 - Analog Devices

Description: Low Power Selectable Gain Differential ADC Driver, G = 1, 2, 3

Download ADA4950-1YCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

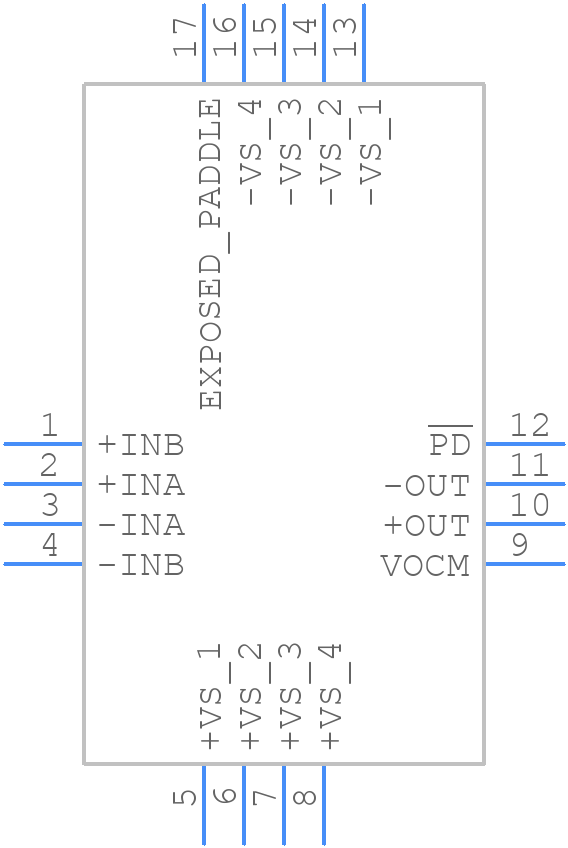

ADA4950-1YCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4950-1YCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADA4950-1YCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADA4950-1YCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4950-1YCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4950-1YCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4950-1YCPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADA4950-1YCPZ-R7, use a high-quality, low-ESR capacitor (e.g., 10uF) between the VCC and GND pins, and a smaller capacitor (e.g., 100nF) between the AVCC and AGND pins. Also, use a separate power supply for the analog and digital sections.
  • The ADA4950-1YCPZ-R7 can handle input voltages up to ±10V, but it's recommended to limit the input voltage to ±5V to ensure optimal performance and prevent damage to the device.
  • To configure the ADA4950-1YCPZ-R7 for differential input mode, connect the IN+ and IN- pins to the differential signal sources, and set the CM pin to the common-mode voltage. For single-ended input mode, connect the IN+ pin to the signal source, and tie the IN- pin to the analog ground (AGND).
  • The recommended clock frequency for the ADA4950-1YCPZ-R7 is between 10MHz and 100MHz. A higher clock frequency can improve the device's bandwidth and SNR, but may also increase power consumption and noise sensitivity.
