ADA4950-1YCPZ-RL - Analog Devices

Description: Low Power Selectable Gain Differential ADC Driver, G = 1, 2, 3

Download ADA4950-1YCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

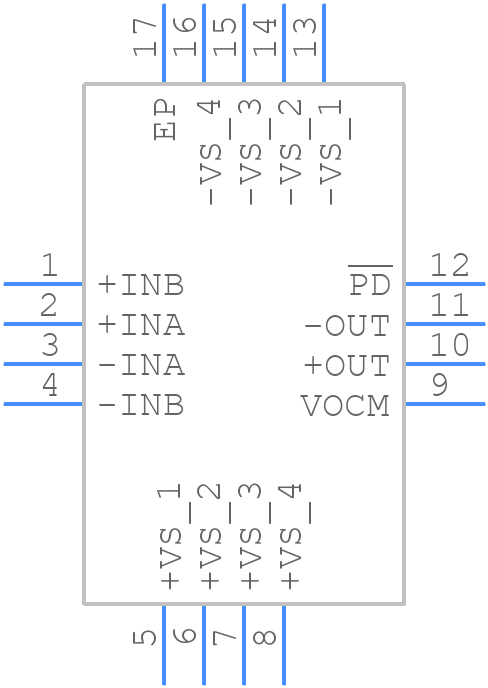

ADA4950-1YCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4950-1YCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADA4950-1YCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADA4950-1YCPZ-RL Details

  • Manufacturer Part Number:

    ADA4950-1YCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4950-1YCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4950-1YCPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to decouple the power supplies with 10uF and 100nF capacitors.
  • To optimize the ADA4950-1YCPZ-RL for low noise performance, use a low-noise power supply, keep the input signals away from digital signals, and use a low-noise reference voltage. Additionally, use a capacitor in the range of 10nF to 100nF between the VREF pin and ground to filter out high-frequency noise.
  • The ADA4950-1YCPZ-RL has an operating temperature range of -40°C to +125°C, but it's recommended to operate it within the range of -20°C to +85°C for optimal performance and reliability.
  • While the ADA4950-1YCPZ-RL can operate up to 125°C, it's not recommended to use it in high-temperature environments above 85°C for extended periods. Prolonged exposure to high temperatures can affect the device's reliability and performance.
  • Common issues with the ADA4950-1YCPZ-RL include incorrect pin connections, inadequate power supply decoupling, and noise coupling from digital signals. To troubleshoot, check the pin connections, ensure proper power supply decoupling, and use a scope to check for noise on the input signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
