![ADA4950-2YCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm and 0.75 mm Package Height (CP-24-14)-A](https://media.componentsearchengine.com/images/available.svg?v=0.74.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADA4950-2YCPZ-R7
- Part Number ADA4950-2YCPZ-R7
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm and 0.75 mm Package Height (CP-24-14)-A
- Released Date Jan 11, 2017
- Last Modified Date May 14, 2025 12:08 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADA4950-2YCPZ-R7 Details
-
Manufacturer Part Number:
ADA4950-2YCPZ-R7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-2, LFCSP-24
-
Pin Count:
24
-
Manufacturer Package Code:
CP-24-1
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
ADA4950-2YCPZ-R7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADA4950-2YCPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
The ADA4950-2YCPZ-R7 requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD).
-
The maximum allowable capacitive load for the ADA4950-2YCPZ-R7's output is 10nF. Exceeding this limit can cause instability and oscillations. It's recommended to use a buffer amplifier or an isolation resistor to minimize the capacitive load and ensure stability.
-
To optimize the ADA4950-2YCPZ-R7's performance for high-frequency applications, use a low-ESR decoupling capacitor, minimize the PCB trace lengths, and use a high-frequency-compatible layout. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
-
The ADA4950-2YCPZ-R7 has a human body model (HBM) ESD rating of 2kV. To protect the device from electrostatic discharge, use ESD-safe handling and storage procedures, and consider adding ESD protection devices such as TVS diodes or ESD arrays to the PCB design.
Trust Checks
System Verified
ADA4950-2YCPZ-R7 Overview

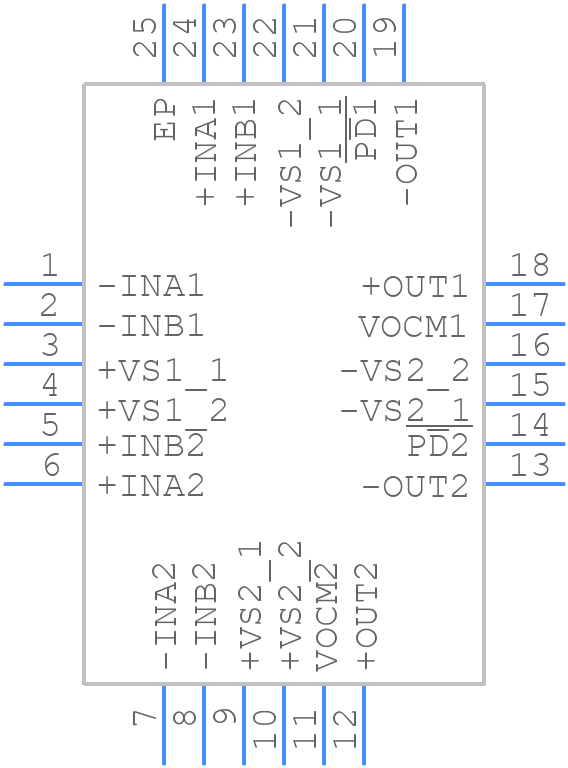

Use the download button to access the ADA4950-2YCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49,
or try a keyword search, such as Line Driver or Receivers
