ADA8282WBCPZ - Analog Devices

Description: Analog Devices ADA8282WBCPZ, Differential Amplifier 42MHz 4-channel 32-Pin LFCSP

Download ADA8282WBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

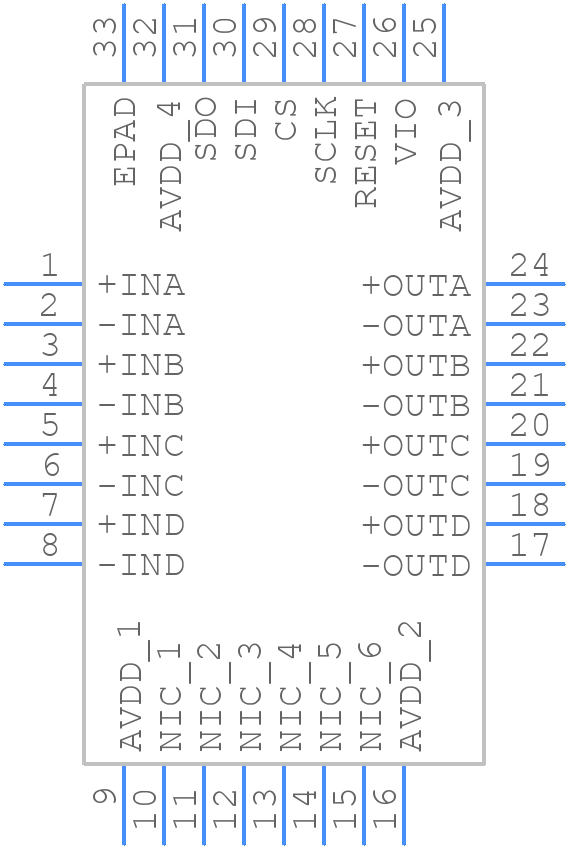

ADA8282WBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA8282WBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_WQ
click to zoom
3D Models
ADA8282WBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP_WQ
click to zoom

ADA8282WBCPZ Details

  • Manufacturer Part Number:

    ADA8282WBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADA8282WBCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA8282WBCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA8282WBCPZ for low noise and high accuracy, ensure that the device is operated within its recommended operating conditions, use a low-noise power supply, and minimize the distance between the device and the analog signal sources. Additionally, use a high-quality analog-to-digital converter (ADC) and a low-noise amplifier, if necessary.
  • When selecting external components for the ADA8282WBCPZ, consider the device's operating frequency, input impedance, and output impedance. Choose components with low equivalent series resistance (ESR) and high-quality capacitors with low equivalent series inductance (ESL). Additionally, ensure that the components are compatible with the device's operating voltage and temperature range.
  • To troubleshoot common issues with the ADA8282WBCPZ, start by verifying the device's operating conditions, power supply, and input signals. Check for noise sources, such as electromagnetic interference (EMI) or radio-frequency interference (RFI), and ensure that the device is properly grounded. Use oscilloscopes and signal analyzers to measure the input and output signals, and consult the datasheet and application notes for guidance.
  • The ADA8282WBCPZ has a maximum junction temperature of 150°C. To ensure reliable operation, maintain a safe operating temperature by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation. Monitor the device's temperature and adjust the operating conditions accordingly.
