ADAQ7988BCCZ - Analog Devices

Description: 16-bit, 500 kSPS, Integrated Data Acquisition System

Download ADAQ7988BCCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

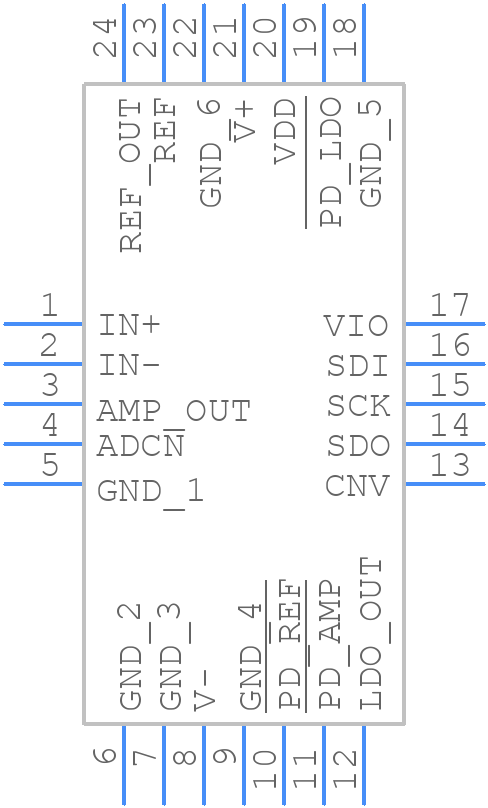

ADAQ7988BCCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAQ7988BCCZ - Analog Devices PCB footprint - Other - Other - ADAQ7988BCCZ-3
click to zoom
3D Models
ADAQ7988BCCZ - Analog Devices - 3D model - Other - ADAQ7988BCCZ-3
click to zoom

ADAQ7988BCCZ Details

  • Manufacturer Part Number:

    ADAQ7988BCCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CC-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1 V

  • Analog Input Voltage-Min:

    -1 V

  • Conversion Time-Max:

    1.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-XQCC-N24

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.002%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    2.08 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADAQ7988BCCZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital traces separate, and use shielding and filtering to minimize noise. Refer to the ADI application note AN-931 for more details.
  • The ADAQ7988BCCZ's AFE can be optimized by selecting the appropriate gain, filter, and sampling rate settings. Consult the datasheet and ADI's application notes (e.g., AN-1064) for guidance on selecting the optimal settings for your specific application.
  • The ADAQ7988BCCZ is rated for operation up to 125°C. However, high temperatures can affect its performance and accuracy. Consult the datasheet and ADI's application notes for guidance on thermal management and compensation techniques.
  • Follow proper PCB design and layout practices, use shielding and filtering, and ensure that the ADAQ7988BCCZ is properly grounded. Consult the datasheet and ADI's application notes for more information on EMC and EMI compliance.
  • The ADAQ7988BCCZ requires a specific power-on and power-down sequencing to ensure proper operation. Consult the datasheet and ADI's application notes for the recommended power-up and power-down sequences.
