ADAR7251WBCSZ - Analog Devices

Description: ANALOG DEVICES - ADAR7251WBCSZ - ADC, 16BIT, 4CH, SPI/PARALLEL, LFCSP-48

Download ADAR7251WBCSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

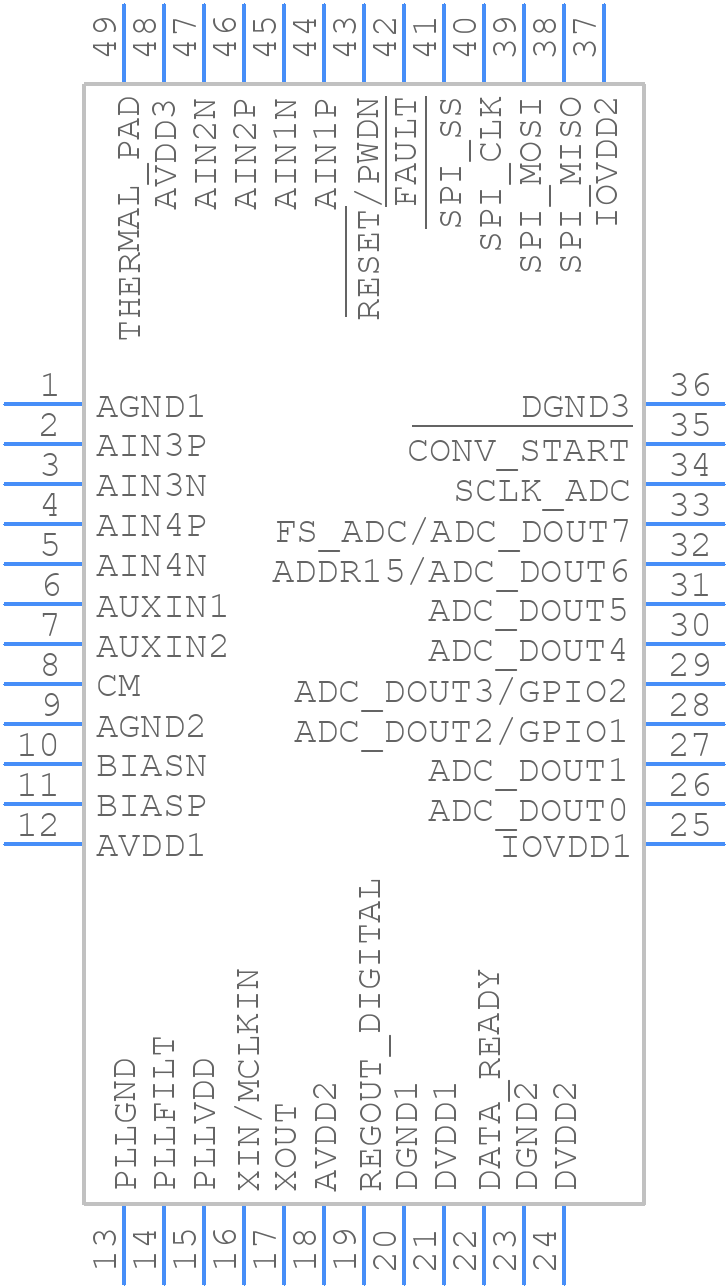

ADAR7251WBCSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAR7251WBCSZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CS-48-1
click to zoom
3D Models
ADAR7251WBCSZ - Analog Devices - 3D model - Quad Flat No-Lead - CS-48-1
click to zoom

ADAR7251WBCSZ Details

  • Manufacturer Part Number:

    ADAR7251WBCSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CS-48-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    5.6 V

  • Analog Input Voltage-Min:

    -5.6 V

  • Conversion Time-Max:

    0.8333 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1.2 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADAR7251WBCSZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the decoupling capacitors close to the device.
  • To optimize for low power consumption, use the lowest possible clock frequency, disable the internal voltage regulator, and use the power-down mode when not in use. Additionally, use a low-power mode for the ADC and DAC, and minimize the number of conversions per second.
  • The recommended calibration procedure involves a full-scale calibration, followed by a zero-scale calibration. The full-scale calibration involves applying a full-scale input voltage and adjusting the internal gain and offset registers to achieve the desired output code. The zero-scale calibration involves applying a zero-scale input voltage and adjusting the internal offset register to achieve the desired output code.
  • To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the power supply lines. Additionally, use a low-pass filter on the analog input lines and ensure that the PCB layout is designed to minimize radiation and susceptibility.
  • The recommended thermal management strategy involves using a heat sink or a thermal pad on the exposed pad of the device, and ensuring good airflow around the device. Additionally, use a thermal interface material (TIM) to fill the gap between the device and the heat sink or thermal pad.
