ADAU1361BCPZ-RL - Analog Devices

Description: EATURES ► 24-bit stereo audio ADC and DAC: >98 dB SNR ► Sampling rates from 8 kHz to 96 kHz ► Low power: 7 mW record, 7 mW playback, 48 kHz at 1.8 V ► 6 analog input pins, configurable for single-ended or differential inputs ► Flexible analog input/output mixers

Download ADAU1361BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

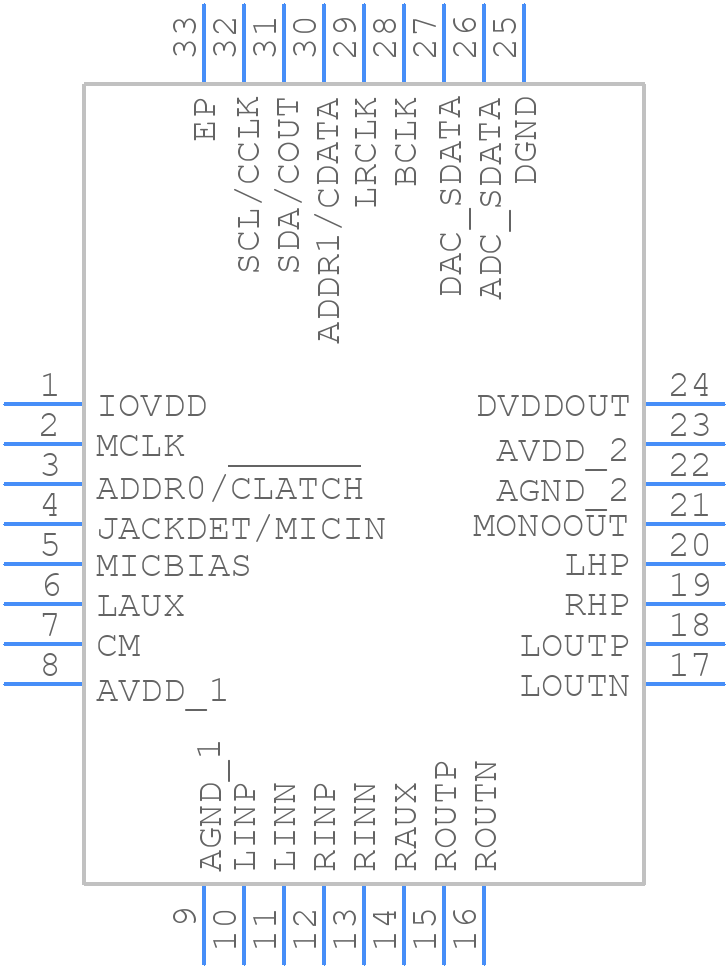

ADAU1361BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1361BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 x 5 mm Body and 0.85 mm Package Height (CP-32-4)
click to zoom
3D Models
ADAU1361BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 x 5 mm Body and 0.85 mm Package Height (CP-32-4)
click to zoom

ADAU1361BCPZ-RL Details

  • Manufacturer Part Number:

    ADAU1361BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.65 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

ADAU1361BCPZ-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the ADAU1361BCPZ-RL in the device's evaluation board documentation. It's essential to follow this guide to ensure proper thermal management, noise reduction, and signal integrity.
  • Analog Devices provides a software development tool called SigmaStudio, which allows designers to graphically configure and program the ADAU1361BCPZ-RL for various audio applications. The tool provides a user-friendly interface to design and implement audio processing algorithms.
  • The maximum power consumption of the ADAU1361BCPZ-RL depends on the operating mode and clock frequency. According to the datasheet, the maximum power consumption is approximately 350 mW when operating at 48 kHz and 3.3 V supply voltage. However, this value can be reduced by optimizing the clock frequency and power-down modes.
  • To ensure EMC with the ADAU1361BCPZ-RL, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, Analog Devices provides EMC guidelines and recommendations in the device's datasheet and application notes.
  • The ADAU1361BCPZ-RL has a thermal pad on the bottom of the package, which requires a thermal connection to a heat sink or a thermal plane on the PCB. A thermal interface material (TIM) can be used to improve the thermal connection. It's essential to follow Analog Devices' thermal management guidelines to ensure the device operates within its recommended temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAU1361BCPZ-RL Overview

Use the download button to access the ADAU1361BCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADAU1, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
