ADAU1361BCPZ - Analog Devices

Description: ADAU1361BCPZ, Audio Codec 2 (ADC), 2 (DAC)-channel 24bit- 96ksps Serial-I2C, Serial-SPI 32-Pin LFCSP EP

Download ADAU1361BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

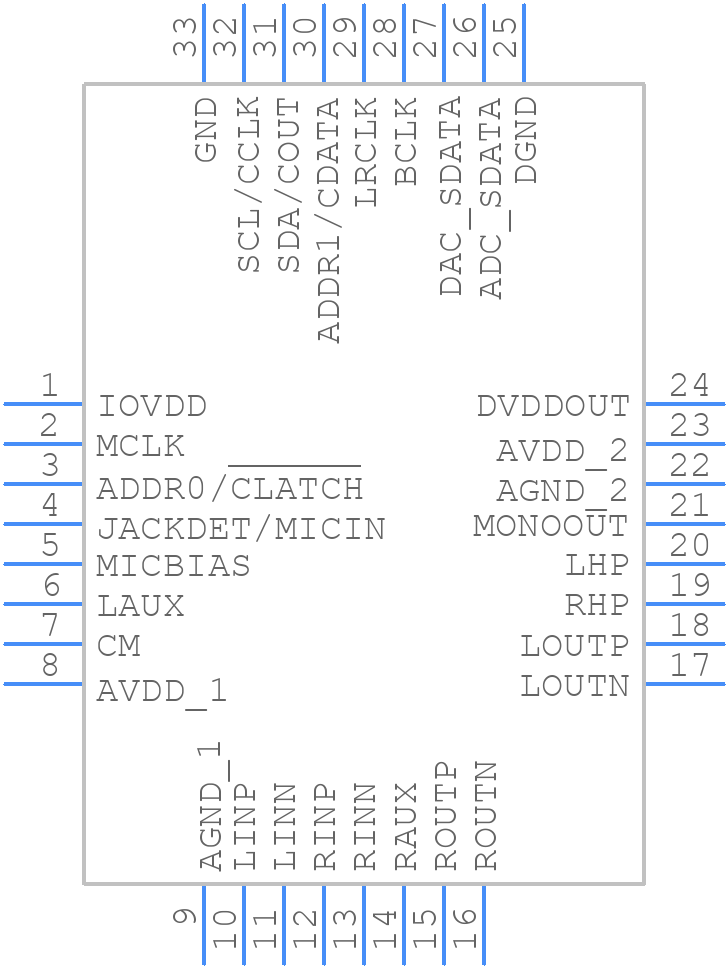

ADAU1361BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1361BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom
3D Models
ADAU1361BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom

ADAU1361BCPZ Details

  • Manufacturer Part Number:

    ADAU1361BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.65 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

ADAU1361BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before applying the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADAU1361 can be configured using the SigmaStudio software, which provides a graphical user interface for designing and implementing audio processing algorithms. The software allows users to configure the ADAU1361's digital signal processing (DSP) core, analog-to-digital converters (ADCs), and digital-to-analog converters (DACs) for a specific audio application.
  • The maximum clock frequency for the ADAU1361 is 192 kHz, which is the maximum sampling frequency for the ADCs and DACs. However, the internal DSP core can operate at a higher clock frequency, up to 384 kHz, to support more complex audio processing algorithms.
  • To optimize the ADAU1361's power consumption, users can adjust the clock frequency, disable unused features, and use the device's power-down modes. Additionally, the ADAU1361 has a dynamic voltage and frequency scaling (DVFS) feature that allows users to adjust the power consumption based on the specific audio application.
  • The ADAU1361's latency is dependent on the specific audio application and the processing algorithms used. However, the device's latency can be minimized by optimizing the audio processing algorithms, using the device's zero-latency mode, and adjusting the buffer sizes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAU1361BCPZ Overview

Use the download button to access the ADAU1361BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADAU1, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
