ADAU1381BCBZ-RL footprint, schematic symbol and 3D model by Analog Devices

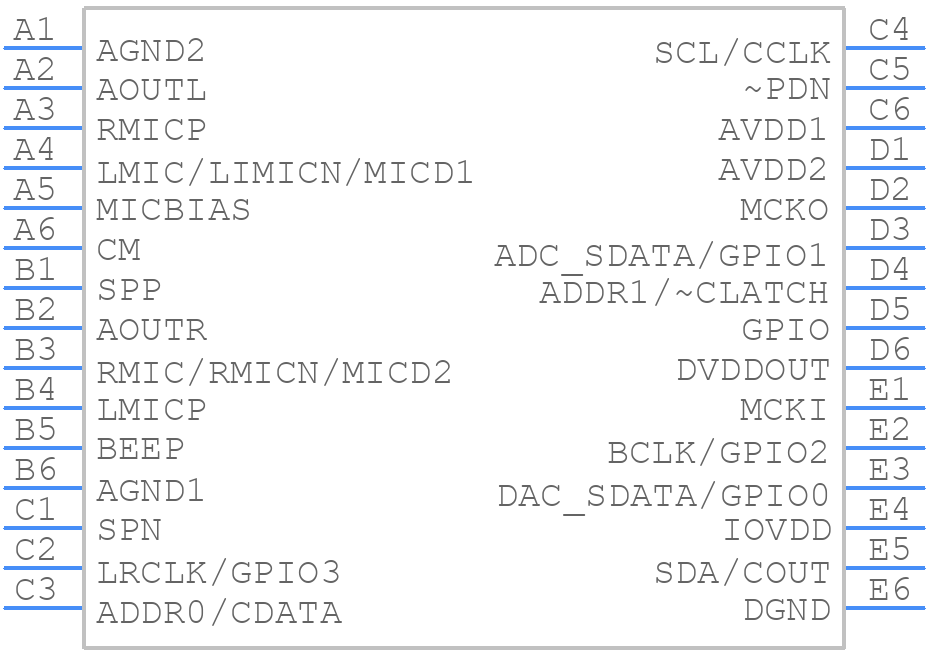

Symbol

click to zoom

PCB Footprints

ADAU1381BCBZ-RL - Analog Devices PCB footprint - Other - Other - BGA30C50P6X5_340X264-65

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADAU1381BCBZ-RL
Part Number ADAU1381BCBZ-RL
Manufacturer Analog Devices
Pin Count 30
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA30C50P6X5_340X264-65
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADAU1381BCBZ-RL Details

Manufacturer Part Number:
ADAU1381BCBZ-RL
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
BGA
Package Description:
3.40 X 2.64 MM, ROHS COMPLIANT, WLCSP-30
Pin Count:
30
Manufacturer Package Code:
CB-30-2
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PBGA-B30
JESD-609 Code:
e3
Length:
3.4 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
30
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA30,5X6,20
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
0.65 mm
Supply Voltage-Max (Vsup):
3.65 V
Supply Voltage-Min (Vsup):
1.8 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
MATTE TIN
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Width:
2.64 mm

ADAU1381BCBZ-RL Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
The ADAU1381 can be configured using the SigmaStudio software, which provides a graphical interface for designing and implementing audio processing algorithms. The software also allows for real-time tuning and debugging of the device.
The maximum clock frequency that can be used with the ADAU1381 is 192 kHz. However, the device can also operate at lower clock frequencies, such as 96 kHz, 48 kHz, or 44.1 kHz, depending on the specific application requirements.
Yes, the ADAU1381 can be used in a stereo audio application. The device has two ADC channels and two DAC channels, which can be configured to support stereo audio processing. Additionally, the device's SigmaDSP core can be programmed to perform stereo audio processing algorithms.
The power consumption of the ADAU1381 depends on the specific operating conditions, such as the clock frequency, supply voltage, and audio signal levels. However, the typical power consumption of the device is around 150 mW when operating at 192 kHz with a 3.3 V supply voltage.
