ADAU1401YSTZ-RL footprint, schematic symbol and 3D model by Analog Devices

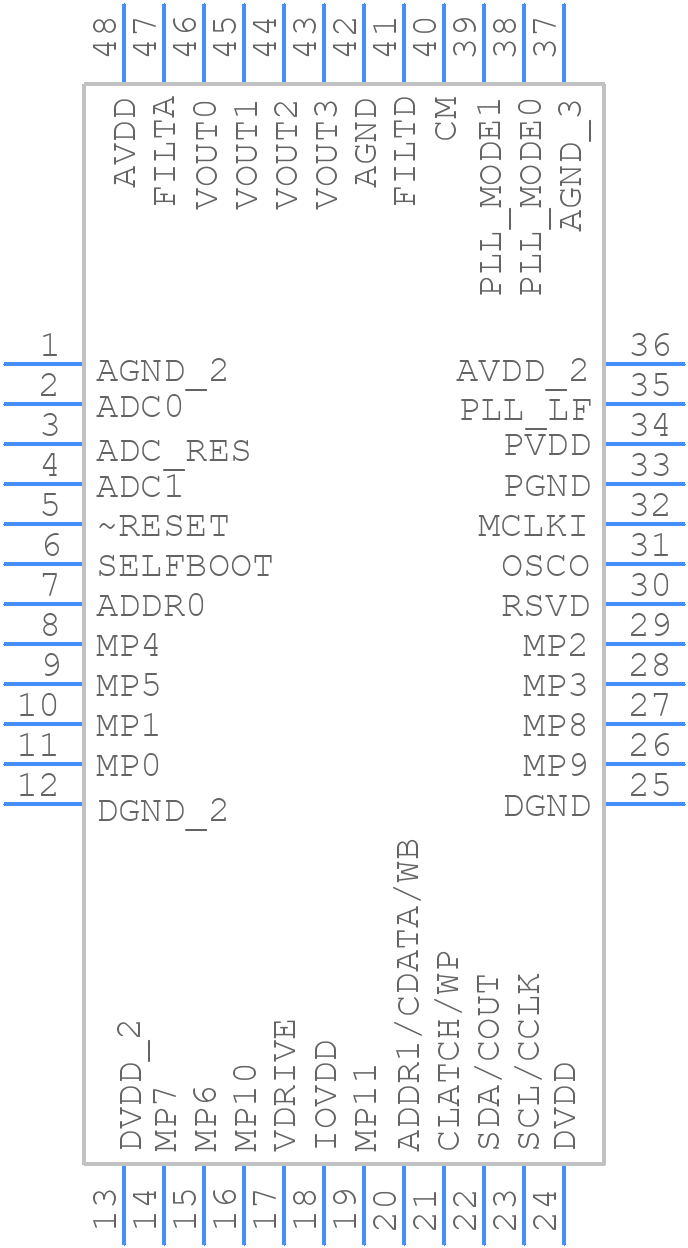

Symbol

click to zoom

PCB Footprints

ADAU1401YSTZ-RL - Analog Devices PCB footprint - Other - Other - QFP50P900X900X160-48N

click to zoom

3D Models

ADAU1401YSTZ-RL - Analog Devices - 3D model - Other - QFP50P900X900X160-48N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADAU1401YSTZ-RL
Part Number ADAU1401YSTZ-RL
Manufacturer Analog Devices
Pin Count 48
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP50P900X900X160-48N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADAU1401YSTZ-RL Details

Manufacturer Part Number:
ADAU1401YSTZ-RL
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
QFP
Package Description:
ROHS COMPLIANT, PLASTIC, MS-026BBC, LQFP-48
Pin Count:
48
Manufacturer Package Code:
ST-48
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.31.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
S-PQFP-G48
JESD-609 Code:
e3
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFQFP
Package Equivalence Code:
QFP48,.35SQ,20
Package Shape:
SQUARE
Package Style:
FLATPACK, LOW PROFILE, FINE PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
1.6 mm
Supply Voltage-Max (Vsup):
3.63 V
Supply Voltage-Min (Vsup):
2.97 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
7 mm

ADAU1401YSTZ-RL Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
The ADAU1401 can be configured using the SigmaStudio software, which provides a graphical interface for designing and implementing audio processing algorithms. The software also includes a library of pre-built blocks and filters to simplify the design process.
The maximum clock frequency for the ADAU1401 is 192 kHz, which allows for high-quality audio processing and conversion.
Yes, the ADAU1401 is a multi-channel audio codec that can support up to 8 channels of audio, making it suitable for a wide range of audio applications, including home theaters, automotive systems, and professional audio equipment.
Analog Devices provides a range of tools and resources to help troubleshoot issues with the ADAU1401, including application notes, FAQs, and a support forum. Additionally, the SigmaStudio software includes a debug mode that allows engineers to monitor and analyze the device's behavior in real-time.

Trust Checks

System Verified

ADAU1401YSTZ-RL Overview

Use the download button to access the ADAU1401YSTZ-RL schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ADAU1, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
