ADAU1401YSTZ - Analog Devices

Description: DSP 28-/56-Bit Audio Processor

Download ADAU1401YSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

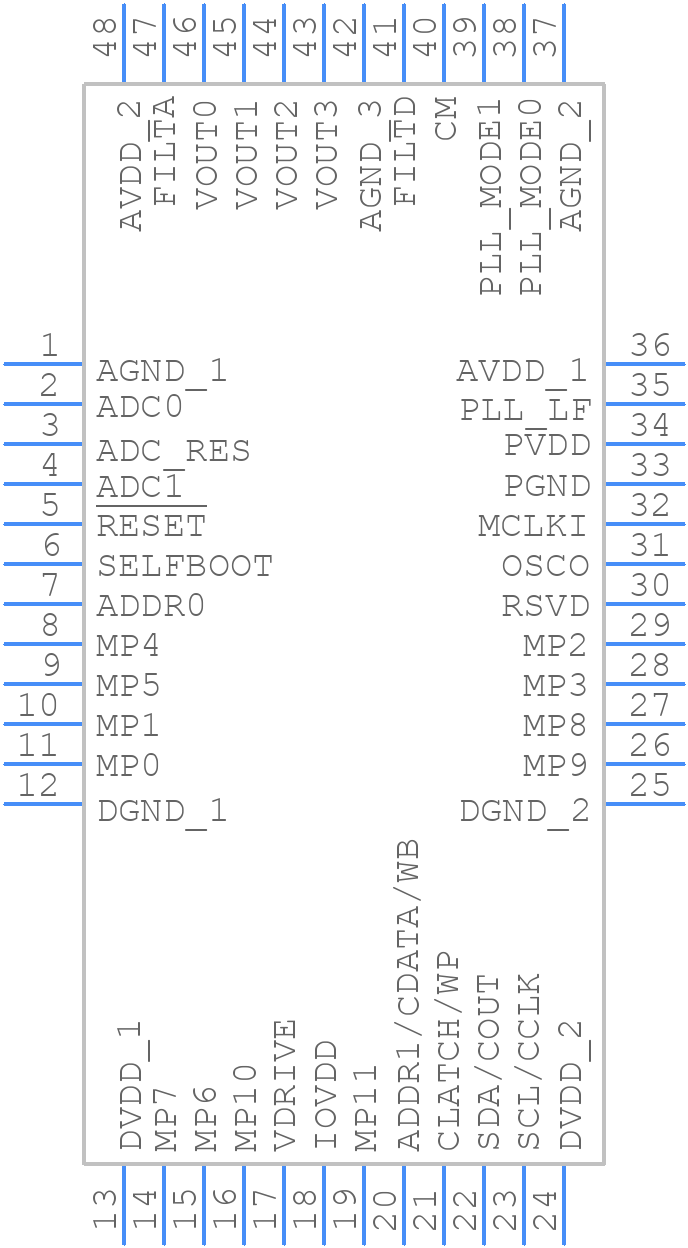

ADAU1401YSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1401YSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - lqfp48
click to zoom
3D Models
ADAU1401YSTZ - Analog Devices - 3D model - Quad Flat Packages - lqfp48
click to zoom

ADAU1401YSTZ Details

  • Manufacturer Part Number:

    ADAU1401YSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADAU1401YSTZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
  • The ADAU1401YSTZ is a highly configurable device. You can use the SigmaStudio graphical development tool to configure the device for your specific audio application. SigmaStudio provides a user-friendly interface to design and implement audio processing algorithms.
  • The ADAU1401YSTZ can support clock frequencies up to 192 kHz. However, the maximum clock frequency may vary depending on the specific application and the clock source used.
  • Yes, the ADAU1401YSTZ is a multi-channel audio codec that can support up to 8 channels of audio. You can configure the device to support multiple channels of audio using the SigmaStudio tool.
  • To troubleshoot issues with the ADAU1401YSTZ, you can use the SigmaStudio tool to debug the device. You can also refer to the device datasheet and application notes for troubleshooting guidelines. Additionally, you can contact Analog Devices' technical support team for assistance.
