ADAU1461WBCPZ - Analog Devices

Description: ADAU1461WBCPZ, Audio Encoder & Decoder IC Stereo Audio Stereo-channel 24bit- 96ksps

Download ADAU1461WBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

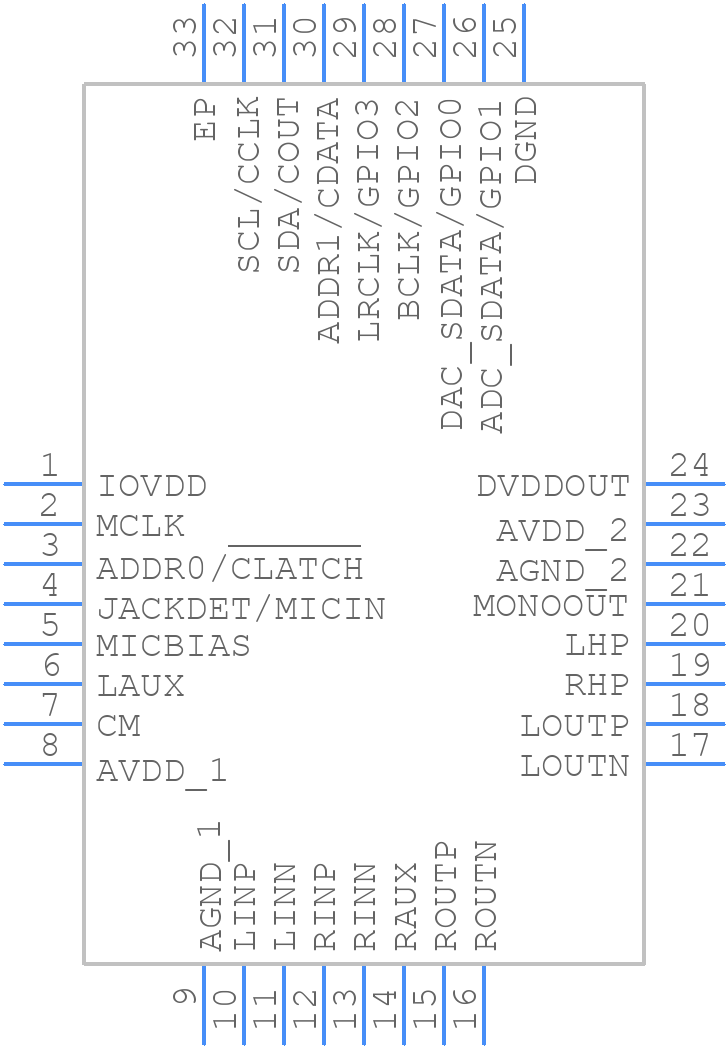

Symbol
ADAU1461WBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1461WBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom
3D Models
ADAU1461WBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom

ADAU1461WBCPZ Details

  • Manufacturer Part Number:

    ADAU1461WBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANTS, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.65 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADAU1461WBCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supplies (AVDD and DVDD) first, followed by the digital supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADAU1461WBCPZ can be configured using the SigmaStudio graphical development environment, which provides a user-friendly interface for designing and implementing audio processing algorithms. The software allows users to configure the device's analog-to-digital converters, digital signal processing blocks, and digital-to-analog converters.
  • The maximum clock frequency that can be used with the ADAU1461WBCPZ is 192 kHz. This allows for high-quality audio processing and conversion.
  • The ADAU1461WBCPZ is a high-power device and requires proper thermal management to ensure reliable operation. This can be achieved by using a heat sink, ensuring good airflow around the device, and avoiding high ambient temperatures.
  • The typical power consumption of the ADAU1461WBCPZ is around 1.2 W, depending on the specific configuration and operating conditions. This makes it suitable for battery-powered applications.
