ADAU1463WBCPZ150 - Analog Devices

Description: Audio DSPs 32bit SigmaDSP Audio 16K/48K, 147.456MHz ,1.20V ~ 3.30V -40°C ~ 105°C (TA)

Download ADAU1463WBCPZ150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADAU1463WBCPZ150 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

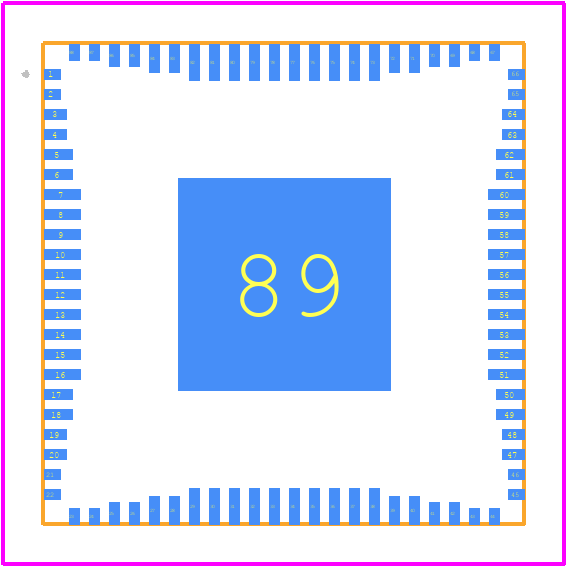

ADAU1463WBCPZ150 - Analog Devices PCB footprint - Other - Other - CP-88-10
click to zoom
3D Models
ADAU1463WBCPZ150 - Analog Devices - 3D model - Other - CP-88-10
click to zoom

ADAU1463WBCPZ150 Details

  • Manufacturer Part Number:

    ADAU1463WBCPZ150

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CP-88-10

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N88

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    88

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

ADAU1463WBCPZ150 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADAU1463 can be configured using the SigmaStudio software, which provides a graphical interface for designing and implementing audio processing algorithms. The software also allows for real-time tuning and debugging of the audio system.
  • The ADAU1463 supports clock frequencies up to 192 kHz, making it suitable for high-quality audio applications.
  • Yes, the ADAU1463 has multiple analog-to-digital converters (ADCs) and digital-to-analog converters (DACs), making it suitable for multi-microphone array applications such as beamforming and noise reduction.
  • The ADAU1463 has a built-in acoustic echo canceller (AEC) module that can be configured using the SigmaStudio software. The AEC module uses adaptive filtering to remove echo and howling from audio signals.
