ADAU1463WBCPZ300RL footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

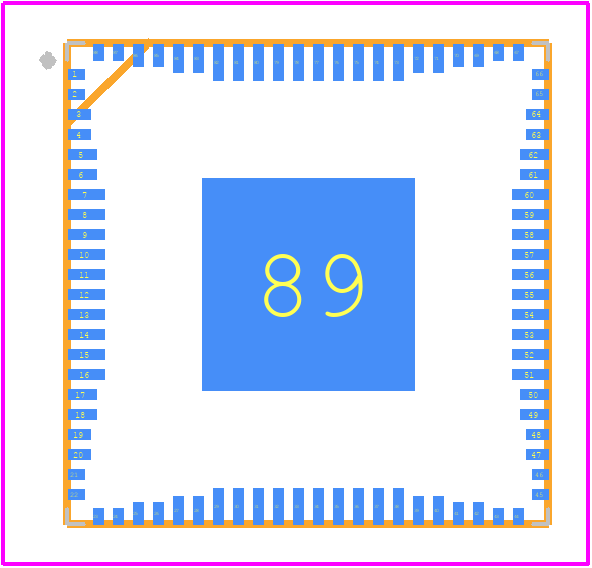

ADAU1463WBCPZ300RL - Analog Devices PCB footprint - Other - Other - ADAU1463WBCPZ300RL

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADAU1463WBCPZ300RL
Part Number ADAU1463WBCPZ300RL
Manufacturer Analog Devices
Pin Count 89
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - ADAU1463WBCPZ300RL
Released Date Aug 27, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADAU1463WBCPZ300RL Details

Manufacturer Part Number:
ADAU1463WBCPZ300RL
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LFCSP-88
Pin Count:
88
Manufacturer Package Code:
CP-88-10
Country Of Origin:
Singapore
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
DVDD SUPPLY OF 1.2V NOMINAL IS USED FOR DIGITAL CIRCUITRY
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
S-XQCC-N88
Length:
12 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
88
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.9 mm
Supply Voltage-Max (Vsup):
3.63 V
Supply Voltage-Min (Vsup):
2.97 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
12 mm

ADAU1463WBCPZ300RL Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
The ADAU1463 can be configured using the SigmaStudio software, which provides a graphical interface for designing and implementing audio processing algorithms. The software also allows for real-time tuning and debugging of the device.
The ADAU1463 supports clock frequencies up to 192 kHz, making it suitable for high-quality audio applications.
Yes, the ADAU1463 has multiple analog-to-digital converters (ADCs) and digital-to-analog converters (DACs), making it suitable for multi-microphone array applications such as beamforming and noise reduction.
The ADAU1463 has built-in echo cancellation algorithms that can be implemented using the SigmaStudio software. The device also has dedicated hardware blocks for echo cancellation, making it a suitable solution for hands-free systems and other applications requiring echo cancellation.
